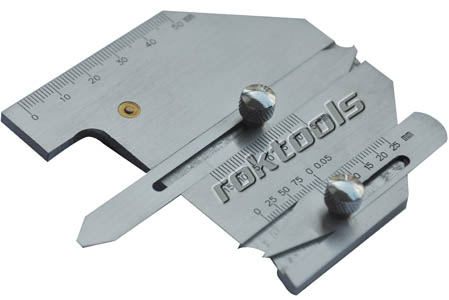

HJC-60 welding  gauge made of stainless steel and is charactrized by portable and compact structure,easy operation and wide application.

Surface Height 0-15mm

Height of Fillet Weld 0-15mm

Thickness of Fillet Weld 0-15mm

Width: 0-60mm

Measurement Items		Range	Tolerance of Indicating Value
Height	Surface Height	0-15	0.2
	Height of Fillet Weld		0.2
	Thickness of Fillet Weld		0.2
Width		0-60	0.3
Undercut Depth of Welding Seam		0-5	0.1
Bevel Angle of Weldment		80-160	30
Gap Size		0.5-6	0.1



The gauge consists of main scale, height gauge, undercut depth gauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle, height, width, gap and undercut depth of weldment, suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.
