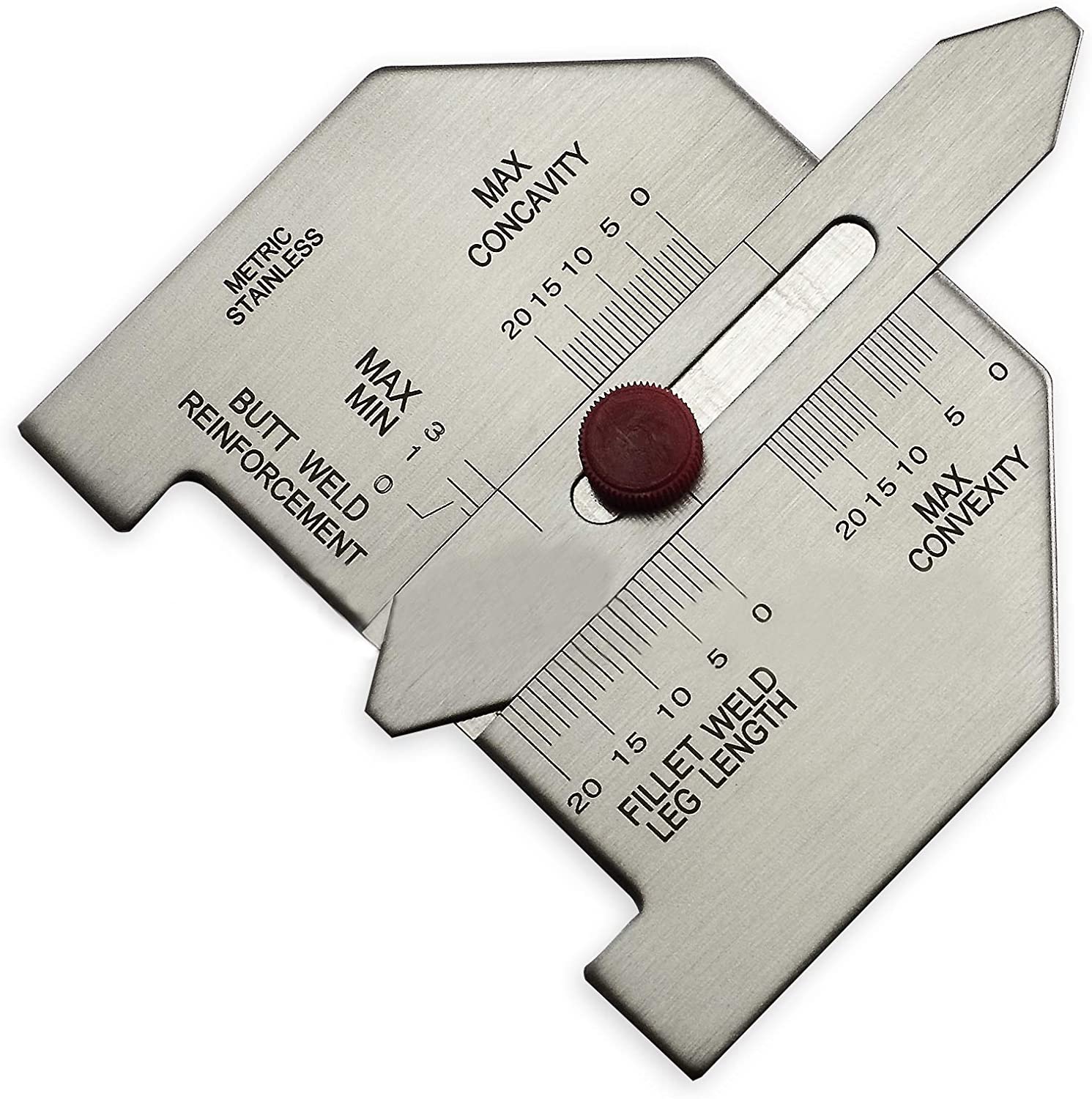

Automatic Weld Size Welding Gauge（Inch）is designed for accurate calibration of butt and fillet type welds. Check The Throat Of Fillet Weld



How to use Automatic Weld Size Welding Gauge

1. To determine Leg size of a fillet weld.

Place the gauge against the toe of the fillet weld and slide pointer out until it touches structure, Read size of the fillet weld on the face of gauges as indicated .(right side, when you put the step side on the item)

2. To check the permissible tolerance of convexity

After the size of a convex weld has been determined , Place the gauge against the structure and slide pointer until it touches face of fillet weld as shown, The maximum convexity should not be greater than indicated by "maximum convexity scale (left side of scale, when you put step side on the item.

3. To check the permissible tolerance of concavity and underfill

Place the gauge against structure and slide pointer out until it touches the face of the fillet weld (on step side),If the pointer does not touch, the fillet requires additional weld metal.

4. To check the permissible tolerance of reinforcement

Place gauge so that reinforcement will come between legs of gauge and slide pointer out until it touches the face of weld(the step side)



Weight: 71kg

Package: clam shell or leather bag
