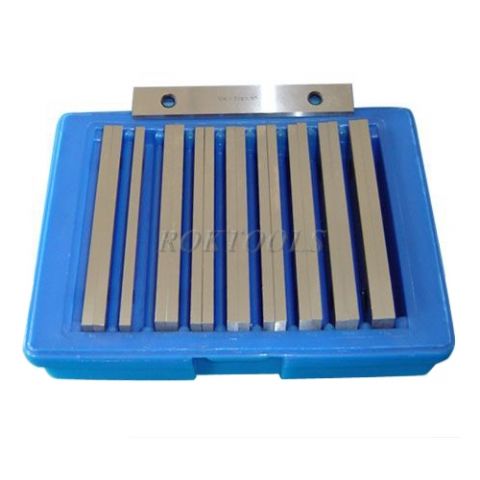

Inch Type 6*1/4 Parallel Set in Pairs
Zoom Browse
Product Name: Inch Type 6*1/4 Parallel Set in Pairs
Product Numbers: PASE-24104
Product Specifications: Length: 6
Product Remark: Hole size: 5/16, 3/8, 1/16
Product Class:Measuring Tools > V-Blocks and Plates > Parallel Sets
Product Details
【DateTime:2016-09-13 Browse:】【Font: Big Mid Small】【Print】【Close】
Inch Type 6*1/4 Parallel Set in Pairs
Features:

-Made of high quality alloy steel

-Precision hardened and ground Precision matched

-Packed in fitted plastic box.

Part No: PASE-24104

Specification:

- 6 long

-1/4" thick

-Accuracy: 0.0002"

Model No Specification size Tolerance of size Parallelism Hole size
PASE-24104
 1/4"x3/4"x6" ±0.0002" 0.0002" 5/16"
1/4"x7/8"x6" 5/16"
1/4"x1"x6" 5/16"
1/4"x1-1/8"x6" 3/8"
1/4"x1-1/4"x6" 3/8"
1/4"x1-3/8"x6" 7/16"
1/4"x1-1/2"x6" 7/16"
1/4"x1-5/8"x6" 1/2"
1/4"x1-3/4"x6" 1/2"
