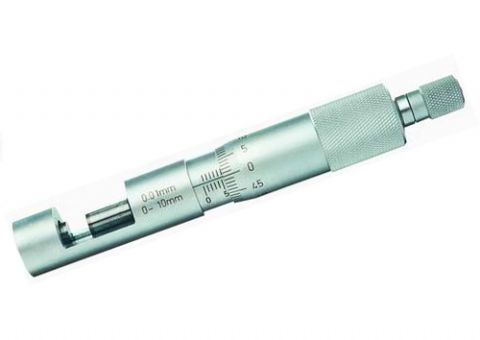

Designed for measuring the diameter of wire or small ball, like string of quita, piano, cable, electrocity wire.
Features:
Carbide face
Ratchet ensures invariable measurement and accurate repeatable reading
Tolerance according to DIN 863
Range of measurement: 0 - 10mm
Accuracy: 0.004 -+mm
Height of measurement: 2mm
Sepcification:
Metric
|
Order NO
|
Range
|
Resolution
|
|
DM-124001
|
0-10mm
|
0.01mm
|
Inch
|
Order NO
|
Range
|
Resolution
|
|
DM-124001Y
|
0-0.4"
|
0.0001"
|
How to use Wire micrometer
Zero out your micrometer
Open the caliper of the micrometer so they are slightly wider then the center width of the wire
Place the bare core end of the wire between the two halves of the micrometer end
Tighten the
micrometer until it is holding the bare core of the wire firmly
