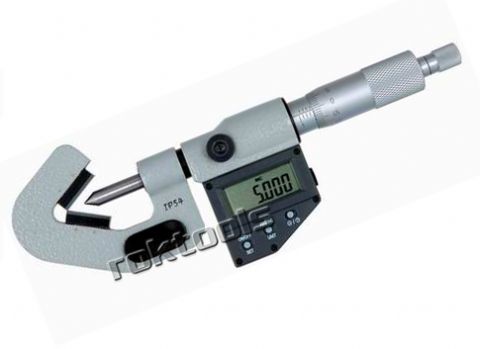

60° Electronic Digital V-Anvil Micrometer(3 Flutes) It is one kind of special micrometer with prism-shaped anvil, to measure the diameter of items with odd flutes such as taps, reamers,
With Ratchet Stop for constant force
Resolution: .00005"/.001mm
Carbide-tipped spindle
Inch/Metric conversion
Positive locking clamp
Supplied with setting standard
IP54 protection
ABS/inc
SPC output(optional)
Diameter of spindle: 6.5
Length of anvil: 18mm
Power consumption: ＜35μa
Working temperature: 0℃-40℃
Storage temperature: -20℃-60℃
Power: SR44 battery.
Range: 1-15mm, 5-20mm, 20-35mm
|
Part NO.
|
Range
|
Resolution
|
|
DM-133331
|
1-15mm
|
0.001mm
|
|
|
5-20mm
|
0.001mm
|
|
|
20-35mm
|
0.001mm
|
|
|
35-50mm
|
0.001mm
|
|
|
50-65mm
|
0.001mm
|
|
|
65-80mm
|
0.001mm
|
|
|
80-95mm
|
0.001mm
|
|
|
2.3-25mm
|
0.001mm
|
|
DM-133339
|
25-50mm
|
0.001mm
|
