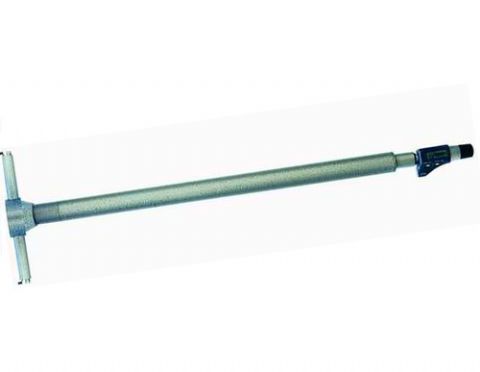

Two Point Internal Inside Micrometer With Interchangeable Rods
Features:
Includes an extension rod for access to deep bores.
Patent structure for large range measurement.
Carbide-tipped measuring faces helps provide wear resistance.
Meet with DIN40050/IEC529 standard.
L-maximum dimension of measured diameter.
With Interchangeable measuring rods(L)
|
Order No
|
Range
|
Interchangeable Measuring Rods(L)
|
Setting Ring
|
Extension Rods
|
|
IM-321601
|
200-500mm
|
3*50mm, 3*100mm
|
200mm
|
150mm, 500mm
|
|
IM-321602
|
200-1000mm
|
2*50mm, 2*100mm,
2*150mm 2*200mm, 150mm, 500mm
2*250mm, 3*300mm, 1000mm
2*350mm
|
200mm
|
150mm, 500mm,
1000mm
|
Inch
|
Order No
|
Range
|
Interchangeable Measuring Rods(L)
|
Setting Ring
|
Extension Rods
|
|
IM-321601Y
|
8-20
|
2*2 , 2*4
|
8
|
6, 20
|
|
IM-321602Y
|
8-40
|
2*2, 2*4 ,
2*6 2*8,
2*10, 2*12, 2*14
|
8
|
6", 20", 40",
|
