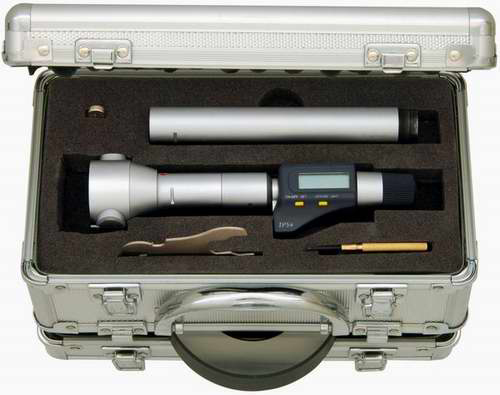

Electronic Digital Two Point Internal Inside Micrometer With Setting Ring
Part No: IM-321701
Features:
-Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole with an extension rod.
-Patented structure for Large measuring range.
-Highly durable with cabide-tipped contact points
-Ratchet stop.

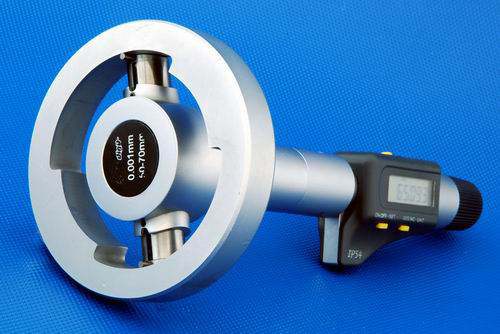

-Supplied with setting rings for zero adjust.
-Ip54 Water proof.
Specification:
Metric
|
Order No.
|
Range
|
Accuracy
|
Setting Ring
|
|
IM-321701
|
50-70
|
0.006mm
|
50mm
|
|
IM-321702
|
70-100
|
0.006mm
|
70mm
|
|
IM-321703
|
100-150
|
0.007mm
|
100mm
|
|
IM-321704
|
150-250
|
0.010mm
|
150mm
|
|
IM-321705
|
200-300
|
0.010mm
|
Optional
|
Inch
|
Order No.
|
Range
|
Accuracy
|
Setting Ring
|
|
IM-321701Y
|
2-2.8
|
0.00024
|
2
|
|
IM-321702Y
|
2.8-4
|
0.00024
|
2.8
|
|
IM-321703Y
|
4-6
|
0.00028
|
4
|
|
IM-321704Y
|
6-10
|
0.0004
|
6
|
|
IM-321705Y
|
8-12
|
0.0004
|
Optional
|
