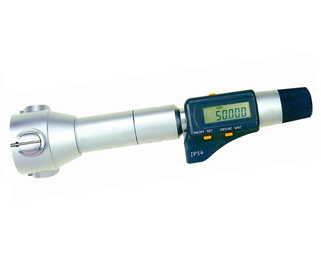

| Product Name: Self-Centering Electronic Three Point Internal Micrometer |
| Product Numbers: IM-321501 |
| Product Specifications: Range: 50mm-70mm, 70-100mm, 100-150mm, 150-250mm |
| Product Unit: 2-2.8, 2.8-4, 4-6, 6-10, 8-12inch |
| Product Remark: Self Centering with Carbide contact |
| Product Class:Measuring Tools > Micrometer > Three point Internal Micrometer |
|
 Product Details
Self-Centering 3-Point Bore Micrometers for the Accurate Measurement of Internal Diameters
Part No: IM-321501
Features:
Meet with DIN40050/IEC529
Self-aligning and self-centering
Ratchet stop provides uniform measuring
Absolute and incremental Measurement
SPC Data Output Capability
Setting Ring Diameter
Metric
|
Order No
|
Range
|
Ring
|
Accuracy
|
|
IM-321501
|
50-70mm
|
Φ50
|
0.004mm
|
|
IM-321502
|
70-100mm
|
Φ70mm
|
0.004mm
|
|
IM-321503
|
100-150mm
|
Φ100mm
|
0.005mm
|
|
IM-321504
|
150-250mm
|
Φ150mm
|
0.007mm
|
|
IM-321505
|
200-300mm
|
Optional
|
0.007mm
|
Inch
|
Order No
|
Range
|
Ring
|
Accuracy
|
|
IM-321501Y
|
2-2.8"
|
2"
|
0.00016"
|
|
IM-321502Y
|
2.8-4"
|
2.8"
|
0.00016"
|
|
IM-321503Y
|
4-6"
|
4"
|
0.00020"
|
|
IM-321504Y
|
6-10"
|
6"
|
0.00028"
|
|
IM-321505Y
|
8-12"
|
Optional
|
0.00028"
|
|
|
