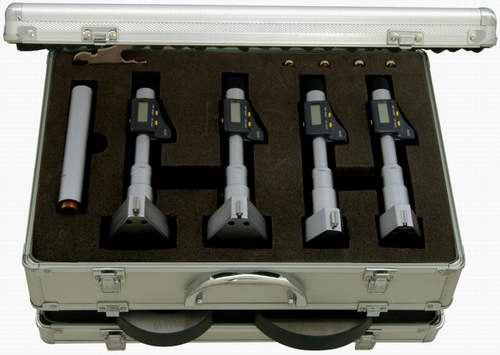

| Product Name: Three Point Internal Micormeter Sets Ranging from 2mm-100mm |
| Product Numbers: IM-321401 |
| Product Specifications: Range: 2-100mm |
| Product Unit: Ratchet Stop |
| Product Remark: Both Metric and Inch |
| Product Class:Measuring Tools > Micrometer > Three point Internal Micrometer |
|
 Product Details Three Point Internal Micormeter Sets Ranging from 2mm-100mm
Part No: IM-321401
Metric
|
Order No
|
Range
|
Ring
|
Anvil
|
Rod
|
|
IM-321401
|
2-2.5mm, 2.5-3mm
|
Φ2.5
|
/
|
/
|
|
IM-321402
|
3-4mm,4-5mm,5-6mm
|
Φ4,Φ5,Φ6
|
/
|
/
|
|
IM-321403
|
6-8mm, 8-10mm,10-12mm
|
Φ6, Φ8, Φ10
|
0.5mm
|
100mm
|
|
IM-321404
|
6-8mm, 8-10mm,10-12mm
|
Φ6, Φ8, Φ10
|
1.5mm
|
100mm
|
|
IM-321405
|
12-16mm, 16-20mm
|
Φ16
|
0.5mm
|
150mm
|
|
IM-321406
|
20-25mm, 25-30mm, 30-40mm
|
Φ25, Φ40
|
0.5mm
|
150mm
|
|
IM-321407
|
20-25mm, 25-30mm, 30-40mm, 40-50mm
|
Φ25, Φ40
|
0.5mm
|
150mm
|
|
IM-321408
|
40-50mm, 50-63mm,62-75mm, 75-88mm,87-100mm
|
Φ40, Φ62,Φ87
|
0.5mm
|
150mm
|
|
IM-321409
|
50-63mm, 62-75mm,75-88mm,87-100mm
|
Φ62,Φ87
|
0.5mm
|
150mm
|
Inch
|
Order No
|
Range(inch)
|
Ring
|
Anvil
|
Rod
|
|
IM-321401Y
|
0.08-0.1", 0.1-0.12"
|
0.1"
|
/
|
/
|
|
IM-321402Y
|
0.12-0.16", 0.16-0.2", 0.2-0.24", 0.24-0.28"
|
0.16, 0.24"
|
/
|
/
|
|
IM-321403Y
|
0.275-0.35, 0.35-0.425, 0.425-0.5"
|
0.275,0.35,0.5"
|
0.02"
|
4"
|
|
IM-321404Y
|
0.275-0.35, 0.35-0.425, 0.425-0.5"
|
0.275,0.35,0.5"
|
0.06"
|
4"
|
|
IM-321405Y
|
0.5-0.65", 0.65-0.8"
|
0.65"
|
0.02"
|
6"
|
|
IM-321406Y
|
|
|
0.02"
|
6"
|
|
IM-321407Y
|
0.8-1,1-1.2, 1.2-1.6, 1.6-2"
|
1, 1.6"
|
0.02"
|
6"
|
|
IM-321408Y
|
|
|
0.02"
|
6
|
|
IM-321409Y
|
2-2.5,2.5-3,3-3.5,3.5-4"
|
2.5,3.5"
|
0.02"
|
6
|
IM-321409 |
|
