Electronic Digital Three Point Inside Micrometer With 50-300mm/2-12
Zoom Browse
Product Name: Electronic Digital Three Point Inside Micrometer With 50-300mm/2-12
Product Numbers: IM-321301
Product Specifications: Range: 50-30mm/ 2-12inch
Product Unit: With interchangeable heads
Product Remark: aluminium body
Product Class:Measuring Tools > Micrometer > Three point Internal Micrometer
Product Details
【DateTime:2014-05-08 Browse:】【Font: Big Mid Small】【Print】【Close】

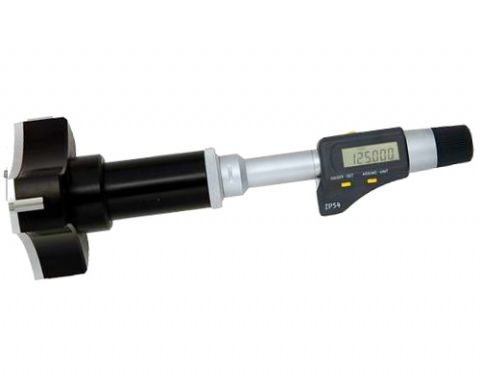

Electronic Digital Three Point Inside Micrometer With 50-300mm/2-12" Range
Part NO: IM-321301
Main Features:
  • Water, oil and coolant resistant to IP54
  • Ratchet stop.
  • Aluminium body.
  • Over 100mm/4inch, setting rings optional

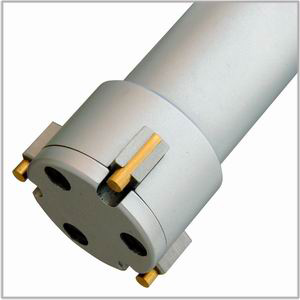

  • Carbide tipped contact points provide excellent durability
  • Two measurement modes ABS (absolute) and INC (incremental)
  • Inch/mm Conversion
  • Adjusting wrench
  • Extension rod
  • Aluminium body

    • Metric

    Order No.
    Range(mm)
    Accuracy
    Setting Ring
    Measuring Depth
    Rods
    IM-321301
    50-63
    0.005mm
    62mm
    114mm
    150mm
    IM-321302
    62-75
    0.005mm
    62mm
    114mm
    150mm
    IM-321303
    75-88
    0.005mm
    87mm
    114mm
    150mm
    IM-321304
    87-100
    0.005mm
    87mm
    114mm
    150mm
    IM-321305
    100-125
    0.005mm
    112.5mm
    145mm
    150mm
    IM-321306
    125-150
    0.005mm
    137.5mm
    145mm
    150mm
    IM-321307
    150-175
    0.005mm
    162.5mm
    145mm
    150mm
    IM-321308
    175-200
    0.005mm
    187.5mm
    145mm
    150mm
    IM-321309
    200-225
    0.007mm
    212.5mm
    145mm
    150mm
    IM-321310
    225-250
    0.007mm
    237.5mm
    145mm
    150mm
    IM-321311
    250-275
    0.007mm
    262.5mm
    145mm
    150mm
    IM-321312
    275-300
    0.007mm
    287.5mm
    145mm
    150mm


     Inch

    Order No.
    Range(mm)
    Accuracy
    Setting Ring
    Measuring Depth
    Rods
    IM-321301Y
    2-2.5"
    0.0002"
    2.5"
    4.56"
    6"
    IM-321302Y
    2.5-3"
    0.0002"
    2.5"
    4.56"
    6"
    IM-321303Y
    3-3.5"
    0.0002"
    3.5"
    4.56"
    6"
    IM-321304Y
    3.5-4"
    0.0002"
    3.5"
    4.56"
    6"
    IM-321305Y
    4-5"
    0.0002"
    4.5"
    5.8"
    6"
    IM-321306Y
    5-6"
    0.0002"
    5.5"
    5.8"
    6"
    IM-321307Y
    6-7"
    0.0002"
    6.5"
    5.8"
    6"
    IM-321308Y
    7-8"
    0.0002"
    7.5"
    5.8"
    6"
    IM-321309Y
    8-9"
    0.00028"
    8.5"
    5.8"
    6"
    IM-321310Y
    9-10"
    0.00028"
    9.5"
    5.8"
    6"
    IM-321311Y
    10-11"
    0.00028"
    10.5"
    5.8"
    6"
    IM-321312Y
    11-12"
    0.00028"
    11.5"
    5.8"
    6“

    Titanium-plated (optional)

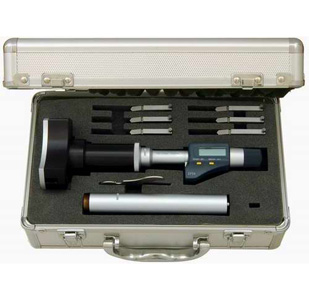

    Package
