Three Point Inside Micrometer with Ratchet Stop Sets
Zoom Browse
Product Name: Three Point Inside Micrometer with Ratchet Stop Sets
Product Numbers: IM-320901
Product Specifications: 6-8mm, 8-10mm,10-12mm
Product Unit: 50-63mm, 62-75mm,75-88mm,87-100mm
Product Remark: •Allow access to deep holes with an extension
Product Class:Measuring Tools > Micrometer > Three point Internal Micrometer
Product Details
【DateTime:2014-04-29 Browse:】【Font: Big Mid Small】【Print】【Close】

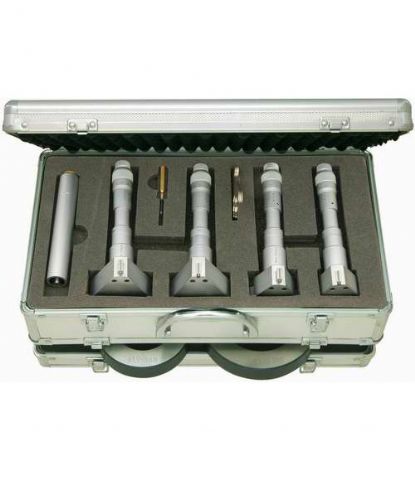

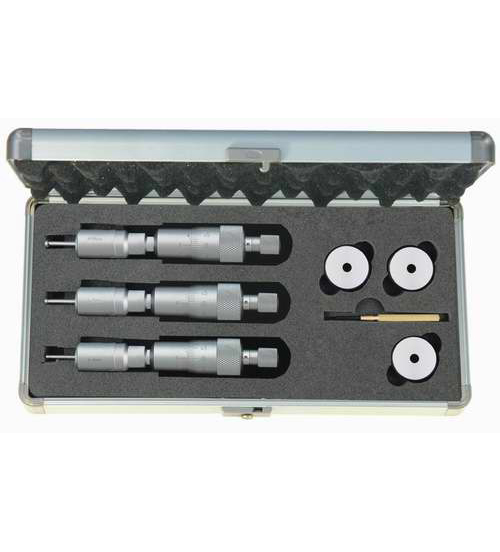

Three Point Inside Micrometer with Ratchet Stop Kit

                     The micrometer has three measuring jaw can measure the inside diameter of item with high accuracy. with Extended rods. it can measure the deep hole .
Features:
  • Measure close to the bottom of blind bores
  • Allow access to deep holes with an extension delivered as standard
  • Supplied with setting rings and extensions
  • Delivered complete in a Alu case
    Metric
    Order No
     Range
    Ring
    Anvil
     Rod
    IM-320901
     2-2.5mm, 2.5-3mm
     Φ2.5
    /
     /
    IM-320902
     3-4mm,4-5mm,5-6mm
     Φ4,Φ5,Φ6
    /
     /
    IM-320903
     6-8mm, 8-10mm,10-12mm
     Φ6, Φ8, Φ10
     0.5mm
    100mm
     IM-320904
    6-8mm, 8-10mm,10-12mm
     Φ6, Φ8, Φ10
     1.5mm
    100mm
     IM-320905
     12-16mm, 16-20mm
     Φ16
     0.5mm
    150mm
     IM-320906
     20-25mm, 25-30mm, 30-40mm
     Φ25, Φ40
     0.5mm
    150mm
     IM-320907
    20-25mm, 25-30mm, 30-40mm, 40-50mm
    Φ25, Φ40
     0.5mm
     150mm
     IM-320908
     40-50mm, 50-63mm,62-75mm, 75-88mm,87-100mm
     Φ40, Φ62,Φ87
     0.5mm
     150mm
     IM-320909
     50-63mm, 62-75mm,75-88mm,87-100mm
     Φ62,Φ87
     0.5mm
    150mm




    Inch:
    Order No
     Range
    Ring
    Anvil
     Rod
    IM-320901Y
     0.08-0.1,0.1-0.12
    0.1
    /
     /
    IM-320902Y
    0.12-0.16,0.16-0.2,0.2-0.24,0.24-0.28
     0.16,0.24
    /
     /
    IM-320903Y
    0.275-0.35, 0.35-0.425, 0.425-0.5
     0.275,0.35,0.5
     0.02
    4
     IM-320904Y
    0.275-0.35, 0.35-0.425, 0.425-0.5
     0.275,0.35,0.5
    0.06
    4
     IM-320905Y
     0.5-0.65 0.65-0.8
     0.65
     0.02
    6
     IM-320906Y
    0.8-1,1-1.2, 1.2-1.6
    1,1.6
    0.02
    6
     IM-320907Y
    0.8-1,1-1.2,1.2-1.6,1.6-2
    1,1.6
     0.02
     6
     IM-320908Y
     1.6-2,2-2.52.5-3,3-3.5,3.5-4
     1.6,2.5,3.5
     0.02
     6
     IM-320909Y
     2-2.5,2.5-3,3-3.5,3.5-4
    ,2.5,3.5
     0.02
    6

    • IM-320902
