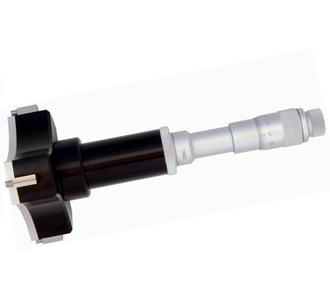

Three Point Inside Internal Micrometer with Interchangeable Jaw
Zoom Browse
Product Name: Three Point Inside Internal Micrometer with Interchangeable Jaw
Product Numbers: IM-320801
Product Specifications: 50-300mm/2-12
Product Unit: Ratchet stop
Product Remark: with Interchangeable jaw
Product Class:Measuring Tools > Micrometer > Three point Internal Micrometer
Product Details
【DateTime:2014-04-09 Browse:】【Font: Big Mid Small】【Print】【Close】
Three Point Inside Internal Micrometer with Interchangeable Jaw
Features:
    Measuring contact points are designed to allow measurements near to the bottom of blind holes.
    Ratchet stop.
    Supplied with extensions rod
    Allow access to deep holes with an extension delivered as standard.
    Setting Rings are optional.
    Mechanical models: .0002" / 0.005mm.
    Packaging: Aluminum case.
Specification:
Range: 50-300mm
Metric
Order No.
Range(mm)
Accuracy
Setting Ring
Measuring Depth
Rods
320801
50-63
0.005mm
62mm
114mm
150mm
320802
62-75
0.005mm
62mm
114mm
150mm
320803
75-88
0.005mm
87mm
114mm
150mm
320804
87-100
0.005mm
87mm
114mm
150mm
320805
100-125
0.005mm
112.5mm
145mm
150mm
320806
125-150
0.005mm
137.5mm
145mm
150mm
320807
150-175
0.005mm
162.5mm
145mm
150mm
320808
175-200
0.005mm
187.5mm
145mm
150mm
320809
200-225
0.007mm
212.5mm
145mm
150mm
320810
225-250
0.007mm
237.5mm
145mm
150mm
320811
250-275
0.007mm
262.5mm
145mm
150mm
320812
275-300
0.007mm
287.5mm
145mm
150mm

 Inch
Order No.
Range(mm)
Accuracy
Setting Ring
Measuring Depth
Rods
320801Y
2-2.5"
0.0002"
2.5"
4.56"
6"
320802Y
2.5-3"
0.0002"
2.5"
4.56"
6"
320803Y
3-3.5"
0.0002"
3.5"
4.56"
6"
320804Y
3.5-4"
0.0002"
3.5"
4.56"
6"
320805Y
4-5"
0.0002"
4.5"
5.8"
6"
320806Y
5-6"
0.0002"
5.5"
5.8"
6"
320807Y
6-7"
0.0002"
6.5"
5.8"
6"
320808Y
7-8"
0.0002"
7.5"
5.8"
6"
320809Y
8-9"
0.00028"
8.5"
5.8"
6"
320810Y
9-10"
0.00028"
9.5"
5.8"
6"
320811Y
10-11"
0.00028"
10.5"
5.8"
6"
320812Y
11-12"
0.00028"
11.5"
5.8"
6“

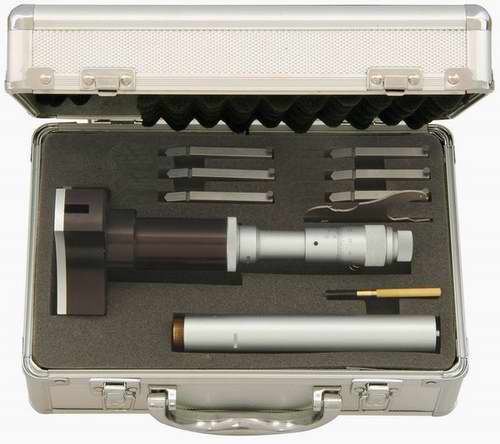

Package
