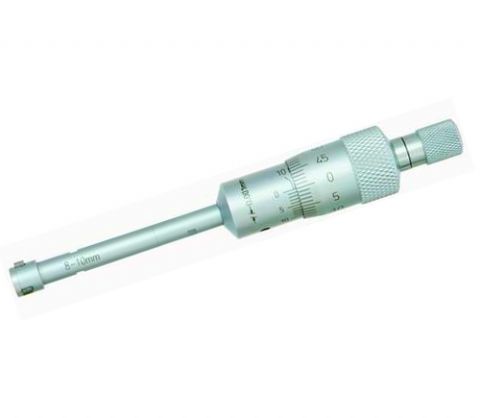

6-12mm/0.275-0.5 Three Point Internal Micrometer
Inside Micrometer with 3 point measurement. Made with carbide measuring faces and supplied with ratchet stop the micrometer guarantees quick and efficient repeatable measurement, The Micrometers have carbide-tipped contact points, and are designed to allow measurements to be taken close to the bottom of a blind bore. The easy to read scale and ratchet stop ensure consistent measurement
Features:
Setting rings for origin point setting
Measuring contact points are designed to allow measurements near to the bottom of blind holes

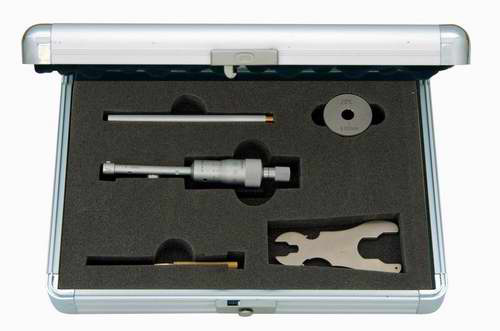

Packaging: Aluminum case
Extention Rod: 100mm(metric) 4(inch)
Metric:
|
Order No
|
Range
|
|
|
Extension Rod
|
|
IM-320601
|
6-8mm
|
6mm
|
53.5mm
|
100mm
|
|
IM-320602
|
8-10mm
|
|
|
|
|
IM-320603
|
10-12mm
|
|
|
100mm
|
Inch
|
Order No
|
Range
|
|
|
Extension Rod
|
|
IM-320601Y
|
0.275-0.35
|
0.16
|
2.14
|
4
|
|
IM-320602Y
|
0.35-0.425
|
|
|
|
|
IM-320603Y
|
0.425-0.5
|
|
|
|
