Three Point Internal Mirometer Without Extension Rods
Zoom Browse
Product Name: Three Point Internal Mirometer Without Extension Rods
Product Numbers: IM-320501
Product Specifications: 2-2.5mm 2.5-3mm,3-4mm,4-5mm,5-6mm
Product Unit: 0.08-0.1,0.1-0.12,0.12-0.16,0.16-0.2,0.24-0.28
Product Remark: Ratchet stop
Product Class:Measuring Tools > Micrometer > Three point Internal Micrometer
Product Details
【DateTime:2014-04-02 Browse:】【Font: Big Mid Small】【Print】【Close】

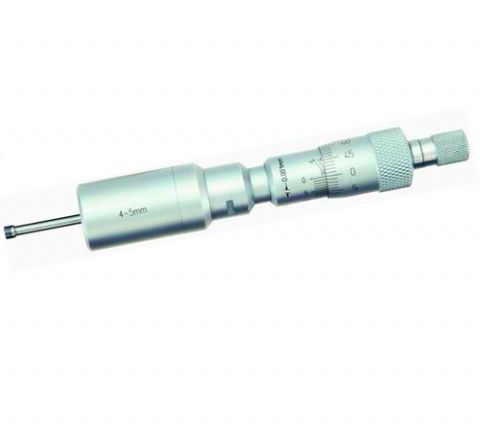

Three Point Mirometer Without Extension Rods
Art No: IM-320501
Features:
Ranging from 2 to 6mm(0.08-0.28) without extension rod.
Measurement can be taken closer to the bottom.
Ratchet stop.
Length: 12.5mm and 22.5mm(metric)
              0.5 and 0.9(inch)
Resolution:
Within: 12mm/0.5  0.001mm(metric), 0.0001(inch)
Over     12mm/0.5‘  0.005mm(metric) 0.0002(inch)
Order NO
Range
Setting Ring
IM-320501
2-2.5mm
2.5mm
IM-320502
2.5-3mm
2.5mm
IM-320503
3-4mm
4mm
IM-320504
4-5mm
5mm
IM-320505
5-6mm
6mm


Inch
Order NO
Range
Setting Ring
IM-320501Y
0.08-0.1
0.1
IM-320502Y
0.1-0.12
0.1
IM-320503Y
0.12-0.16
0.16
IM-320504Y
0.16-0.2
0.16
IM-320505Y
0.2-0.24
0.24

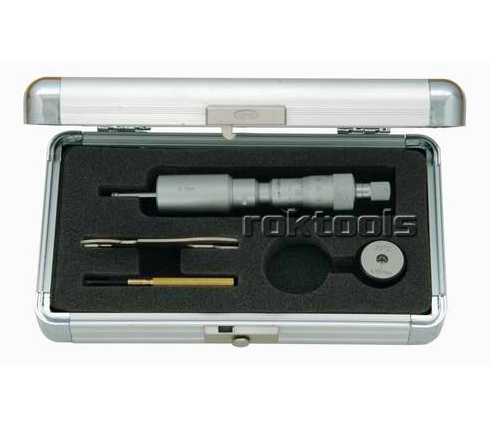

Package for Three Point Micrometer
