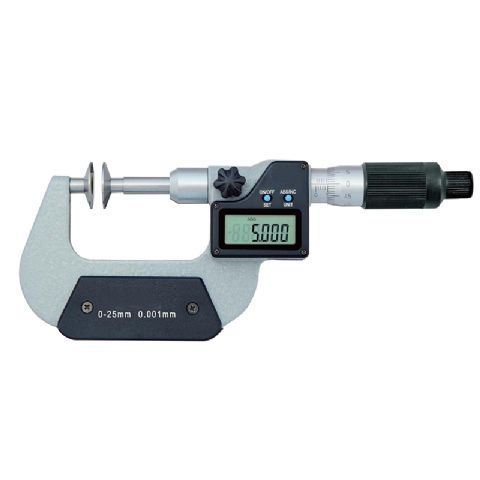

Digimatic Gear Tooth Thickness Micrometer Disk Micometer
Zoom Browse
Product Name: Digimatic Gear Tooth Thickness Micrometer Disk Micometer
Product Numbers: DM-190801
Product Specifications: Least count: 0.001mm
Product Unit: Type: Outside Mic
Product Remark: Meaure the thickness of paper
Product Class:Measuring Tools > Micrometer > Tooth Thickness Micrometer
Product Details
【DateTime:2019-01-15 Browse:】【Font: Big Mid Small】【Print】【Close】

IP 65 Electronic Digital Disk Micrometer

Manufacturer: ROK International Industry Co., Limited

Brand: ROKTOOLS.

Function: Measuring the thickness of gear tooth.

Weight: 0.5kg-3 KG


Features:
  • Anvil: Disc, Spindle: disc
  • IP 65 Dust proof
  • Meet nantional standard
  • Meaure the thickness of paper
  • Measure the thickness of gear tooth.
Specification:
Order NO Range Resolution Diameter of Disk
DM-150801 0-25mm 0.001mm 20mm/0.8"
DM-150802 25-50mm 0.001mm 20mm/0.8"
DM-150803 50-75mm 0.001mm 20mm/0.8"
DM-150804 75-100mm 0.001mm 20mm/0.8"
DM-150805 100-125mm 0.001mm 30mm0.8"
DM-150806 125-150mm 0.001mm 30mm/1.2"
DM-150807 150-175mm 0.001mm 30mm/1.2"
DM-150808 175-200mm 0.001mm 30mm/1.2"
