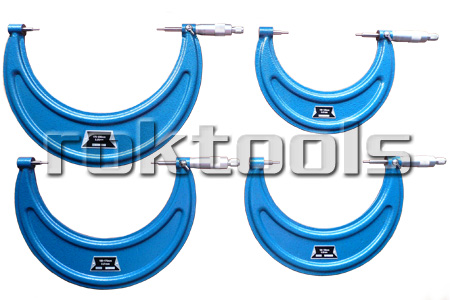

Mechanic Spline Micrometer(ranging 100-200mm)
Zoom Browse
Product Name: Mechanic Spline Micrometer(ranging 100-200mm)
Product Numbers: DM-42X02
Product Specifications: 100-125, 125-150,150-175,175-200
Product Unit: Resolution: 0.01mm
Product Remark: china exporter, manufacturer
Product Class:Measuring Tools > Micrometer > Spline Micrometer
Product Details
【DateTime:2012-11-22 Browse:】【Font: Big Mid Small】【Print】【Close】
The anvil and spindle have a small diameter (3mm x 10mm) for measuring splined shafts, slots, and keyways
With Ratchet Stop for constant force.

Mode                        Range
DM-42X02                100-125
DM-52X02                125-150
DM-62X02                150-175
DM-72X02                175-200
Resolution: 0.01mm
With a standard bar except 0-25mm and 0-1” model
Measuring faces: Carbide tipped





Mechanic Spline Micrometer
