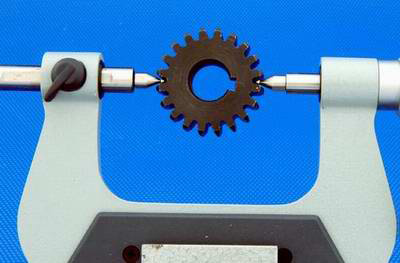

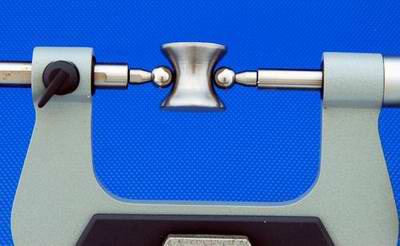

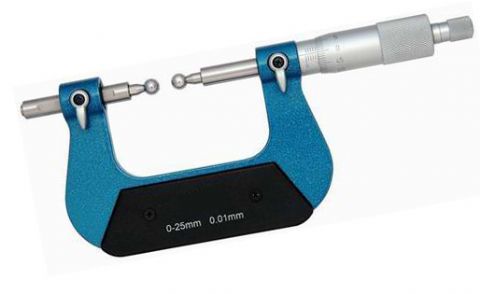

Mechanical Gear Micrometers
Zoom Browse
Product Name: Mechanical Gear Micrometers
Product Numbers: DM-122901
Product Class:Measuring Tools > Micrometer > Special Micrometers
Product Details
【DateTime:2010-10-30 Browse:】【Font: Big Mid Small】【Print】【Close】
Mechanical Gear Micrometers features:
1.  Interchangeable ball tips for various Gear modules(0.6-3.5)
2. Resolution 0.01mm/0.001"

METRIC

Order NO
Range
Resolution
DM-122901
0-25mm
0.001mm
DM-122902
25-50mm
0.001mm
DM-122903
50-75mm
0.001mm
DM-122904
75-100mm
0.001mm
DM-122905
100-125mm
0.001mm
DM-122906
125-150mm
0.001mm
DM-122907
150-175mm
0.001mm



INCH

Order NO
Range
Resolution
DM-122901Y
0-25mm
0.00005"
DM-122902Y
25-50mm
0.00005"
DM-122903Y
50-75mm
0.00005"
DM-122904Y
75-100mm
0.00005"
DM-122905Y
100-125mm
0.00005"
DM-122906Y
125-150mm
0.00005"
DM-122907Y
150-175mm
0.00005"


Interchangeable tips
Order No
Ball Dia
Module
Diametral Pitch
29A
1mm
0.6-0.65
45
29B
1.5mm
0.9-1.0
28-26
29C
2.0mm
1.25
12
29D
2.5mm
1.5
17
29E
3.0mm
1.75
15
29F
3.5mm
2
13
29G
4.0mm
2.25
11
29H
4.5mm
2.5
10
29I
5.0mm
2.75
9
29J
6.0mm
3.5
7
30S
Sets
　
　

1

2
