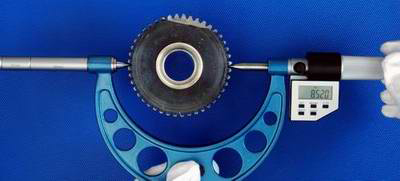

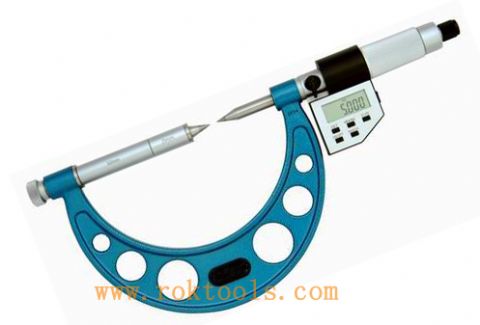

Electronic Gear Root Diameter Micrometer with five buttons features:
1. Resolution: 0.001mm/0.00005"
2. Wider measuring range with adjustable anvil.
3. High accuracy interchangeable anvils enable reading not to be reset when changing anvils.
4. Supplied with standard rods.
5. Pipe combined frame for light weight and high rididity(over 200mm/0-8"
METRIC
|
Order NO
|
Range
|
Resolution
|
Point
|
|
DM-152401
|
5-100mm
|
0.001mm
|
SR0.4mm
|
|
|
100-200mm
|
0.001mm
|
SR0.5mm
|
|
|
200-300mm
|
0.001mm
|
SR0.7mm
|
|
|
300-400mm
|
0.001mm
|
SR0.7mm
|
|
|
400-500mm
|
0.001mm
|
SR0.7mm
|
|
|
500-600mm
|
0.001mm
|
SR0.7mm
|
|
|
600-700mm
|
0.001mm
|
SR0.7mm
|
|
|
700-800mm
|
0.001mm
|
SR0.7mm
|
|
|
800-900mm
|
0.001mm
|
SR0.7mm
|
INCH
|
Order NO
|
Range
|
Resolution
|
Point
|
|
DM-152401Y
|
0.2-4"
|
0.00005"
|
SR0.4mm
|
|
|
4-8"
|
|
SR0.5mm
|
|
|
8-12"
|
|
SR0.7mm
|
|
|
12-16"
|
|
SR0.7mm
|
|
|
16-20"
|
|
SR0.7mm
|
|
|
20-24"
|
|
SR0.7mm
|
|
|
24-28"
|
|
SR0.7mm
|
|
|
28-32"
|
|
SR0.7mm
|
|
|
32-36"
|
|
SR0.7mm
|
