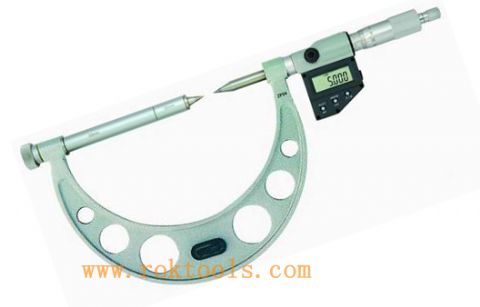

Electronic Gear Root Diameter Micrometer with three buttons features:
1. Wider measuring range with adjustable anvil.
2. High accuracy interchangeable anvils enable reading not to be reset when changing anvils.
3. Painted frame.
4. Pipe combined frame for light weight and high rididity(over 200mm/0-8"
5. Supplied with standard rods.
6. IP54 protection.
METRIC
|
Order NO
|
Range
|
Resolution
|
Point
|
|
DM-132401
|
5-100mm
|
0.001mm
|
SR0.4mm
|
|
|
100-200mm
|
0.001mm
|
SR0.5mm
|
|
|
200-300mm
|
0.001mm
|
SR0.7mm
|
|
|
300-400mm
|
0.001mm
|
SR0.7mm
|
|
|
400-500mm
|
0.001mm
|
SR0.7mm
|
|
|
500-600mm
|
0.001mm
|
SR0.7mm
|
|
|
600-700mm
|
0.001mm
|
SR0.7mm
|
|
|
700-800mm
|
0.001mm
|
SR0.7mm
|
|
|
800-900mm
|
0.001mm
|
SR0.7mm
|
INCH
|
Order NO
|
Range
|
Resolution
|
Point
|
|
DM-132401Y
|
0.2-4"
|
0.00005"
|
SR0.4mm
|
|
|
4-8"
|
|
SR0.5mm
|
|
|
8-12"
|
|
SR0.7mm
|
|
|
12-16"
|
|
SR0.7mm
|
|
|
16-20"
|
|
SR0.7mm
|
|
|
20-24"
|
|
SR0.7mm
|
|
|
24-28"
|
|
SR0.7mm
|
|
|
28-32"
|
|
SR0.7mm
|
|
|
32-36"
|
|
SR0.7mm
|
