Features:

1. The anvil and spindle have blade tips to measure the groove diameter of shafts and keyways.

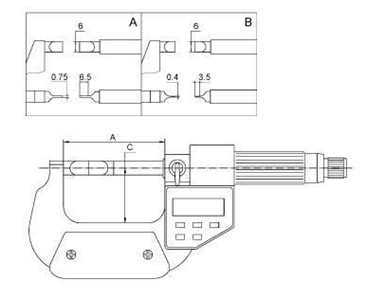

2. Blade tip:thickness x width x length=0.75x6x6.5mm(0.030x0.236x0.256")

3. Non-rotating spindle, ratchet stop



Order NO	Range	Resolution	Accuracy
DM-132301	0-25mm	0.001mm	+/-0.002mm
DM-132302	25-50mm	0.001mm	+/-0.002mm
DM-132303	50-75mm	0.001mm	+/-0.0025mm
DM-132304	75-100mm	0.001mm	+/-0.0025mm
DM-132305	100-125mm	0.001mm	+/-0.003mm
DM-132306	125-150mm	0.001mm	+/-0.003mm
DM-132307	150-175mm	0.001mm	+/-0.0035mm
