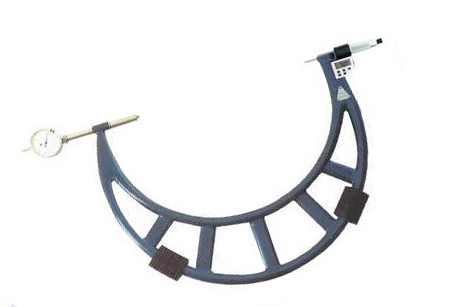

Slide Anvil Micrometers with Dial Indicator

Product Name: Slide Anvil Micrometers with Dial Indicator

Product Numbers: 150301

Product Specifications: 0-1000mm

Product Remark: IP 54 water resistant, RS232 data output

Product Class:Measuring Tools > Micrometer > Outside Micrometers

Product Details

【DateTime:2010-08-02 Browse:】【Font: Big Mid Small】【Print】【Close】

Slide Anvil Micrometers with Dial Indicator Feartures:

1. For wide measuring range and high mearuing accuracy, raning from 0-1000mm or 40"

2. Resolution of dial indicator: 0.01mm/0.0005, Trave: 0-5mm

3. Five Keys: ON/OFF, Date set, MM/IN, ABS/INC, Data Output.

4. RS232 Output.

5. IP54 Water resistant protection.

METRIC

Order NO	Range	Resolution	Accuracy
DM-150301	0-100mm	0.001mm	0.006mm
DM-150302	100-200mm	0.001mm	0.007mm
DM-150303	200-300mm	0.001mm	0.008mm
DM-150304	300-400mm	0.001mm	0.009mm
DM-150305	400-500mm	0.001mm	0.010mm
DM-150306	500-600mm	0.001mm	0.011mm
DM-150307	600-700mm	0.001mm	0.012mm
DM-150308	700-800mm	0.001mm	0.013mm
DM-150309	800-900mm	0.001mm	0.014mm
DM-150310	900-1000mm	0.001mm	0.015mm

INCH

Order NO

Range

Resolution

Accuracy

DM-150301Y

0-4"

0.00005"

0.006mm

DM-150302Y

4-8"

0.00005"

0.007mm

DM-150303Y

8-12"

0.00005"

0.008mm

DM-150304Y

12-16"

0.00005"

0.009mm

DM-150305Y

16-20"

0.00005"

0.010mm

DM-150306Y

20-24"

0.00005"

0.011mm

DM-150307Y

24-28"

0.00005"

0.012mm

DM-150308Y

28-32"

0.00005"

0.013mm

DM-150309Y

32-36"

0.00005"

0.014mm

DM-150310Y

36-40"

0.00005"

0.015mm
