Micrometer Head CNC Accessories Gauge Measuring ABS Function
Zoom Browse
Product Name: Micrometer Head CNC Accessories Gauge Measuring ABS Function
Product Numbers: MD-450101
Product Specifications: Range: 0-25mm 0-50mm
Product Unit: Measuring tools
Product Remark: China Factory Low Price
Product Class:Measuring Tools > Micrometer > Micrometer Heads
Product Details
【DateTime:2021-03-06 Browse:】【Font: Big Mid Small】【Print】【Close】

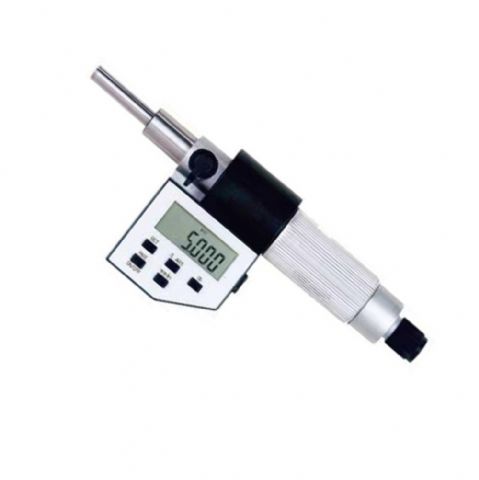

IP 54 Digital Micrometer Head CNC Measuring

Features:

Water and dust profection level; IP 54
Auto Power off
Battery : LR44 or SR44
Ratchet stop.
Chrome plated
Resolution digital : 0.001mm/0.00005
head: 0.01mm/0.0001"
With data ouput(software and cable are optional)
Flat and Spherical measuring face.
With or without clamp nut
Metric
Order NO Range Spindle Tip Stem
MD-450101 0-25mm Flat(Carbide) Plain
MD-450102 0-25mm Spherical SR5 Plain
Inch
Order NO Range Spindle Tip Stem
MD-450101Y 0-1 Flat(Carbide) Plain
MD-450102Y 0-1 Spherical SR5 Plain
