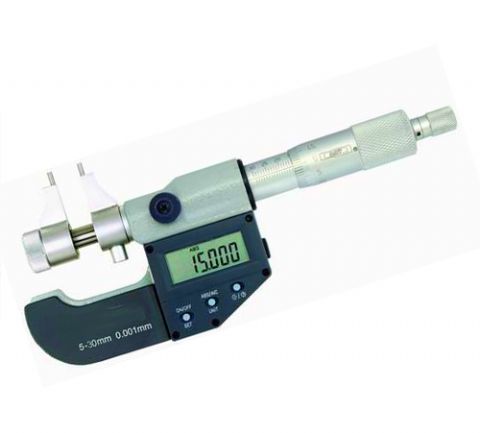

Digital Inside Micrometer with Caliper Jaw
Inside micrometer is a device designed to precisely measure things such as the inner diameter of holes. Where a standard micrometer might be used to measure the outer diameter of a bolt, an inside micrometer could be used to measure the inner diameter of a nut.
Part NO: IM-232101
Features:
Tungsten carbide measuring faces
Satin chrome finish
Supplied with adjusting key and setting ring
ABS function.
Ratchet Stop.
0 Set function.
Low power alert.
IP54 water and dust protection.
MM/inch interchangeable.
Automatic power ON/OFF function
Power: SR44
Working Temperature: 0-40 degree
Specification:
|
Order NO
|
Range
|
Resolution
|
|
IM-232101
|
5-30mm
|
0.001mm
|
|
|
25-50mm
|
0.001mm
|
|
|
50-75mm
|
0.001mm
|
|
|
75-100mm
|
0.001mm
|
|
|
100-125mm
|
0.001mm
|
|
IM-232106
|
125-150mm
|
0.001mm
|
|
IM-232107
|
150-175mm
|
0.001mm
|
|
IM-232108
|
175-200mm
|
0.001mm
|
