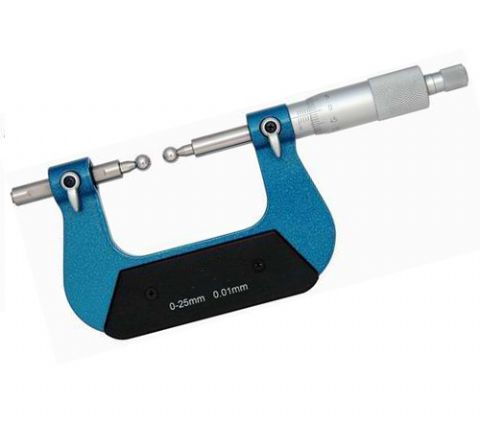

Gear Micrometer(Ball Anvil)
Interchangeable boll tips for various gear modules(0.6-3.5) are available
Chrome-plated frame
Range: 0-175mm
Supplied with setting standards (except 0-25mm)
Optional accessory: ball tips
|
Order NO
|
Range
|
Resolution
|
|
DM-122901
|
0-25mm
|
0.001mm
|
|
|
25-50mm
|
0.001mm
|
|
|
50-75mm
|
0.001mm
|
|
|
75-100mm
|
0.001mm
|
|
|
100-125mm
|
0.001mm
|
|
|
125-150mm
|
0.001mm
|
|
|
150-175mm
|
0.001mm
|
Interchangeable Tips (Optional) list
| Ball diameter |
Ø1mm |
Ø1.5mm |
Ø2mm |
Ø2.5mm |
Ø3mm |
Ø3.5mm |
Ø4mm |
Ø4.5mm |
Ø5mm |
Ø6mm |
| Module |
0.6-0.65 |
0.9-1 |
1.25 |
1.5 |
1.75 |
2 |
2.25 |
2.5 |
2.75 |
3.5 |
| Diametral pitch |
45 |
28-26 |
22 |
17 |
15 |
13 |
11 |
10 |
9 |
7 |
