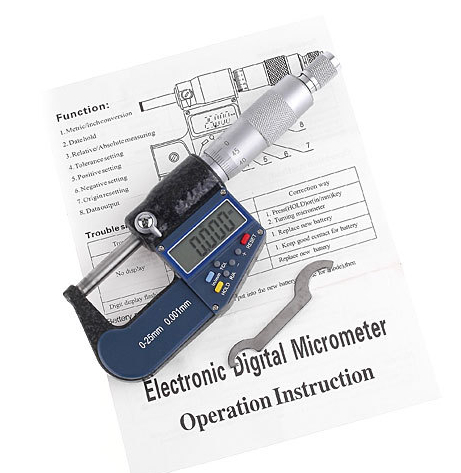

Part No: DM-017

   This micrometer is designed for professional users who need high accuracy results. wih high definiction and contract display, the tools always supply you the same answer when you measure the items.  and it is affordable to most of users with resonable price, 1/8 or less than tools made in Janpan or Germany.

* "Relative / Absolute" measuring
* Tolerance "TOL" measuring
* Origin resetting

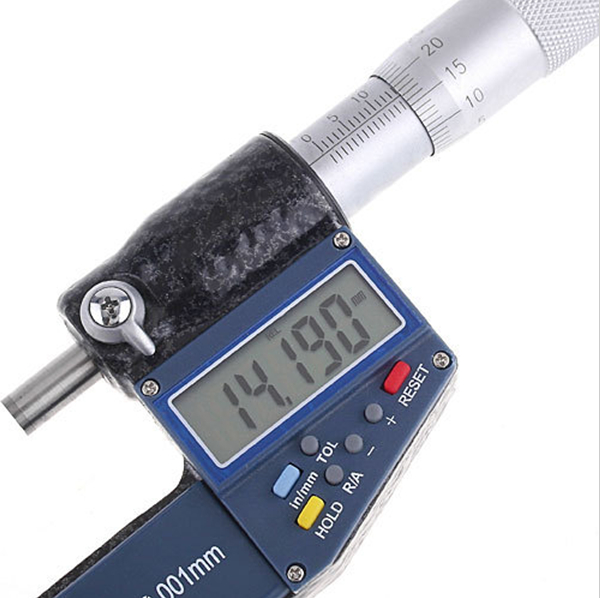

* Extra Large LCD Screen
* High accuracy
* Data hold and wipe out
* Data output
* Come with a wrench for calibration
* With a Fitted Plastic Protective Case
* Auto search for maximum and minimum values
* Absolute/Relative measuring
* Metric/Inch conversion
* Satin-Chrome Finish, Carbide measuring Faces

Specifications:
* Color: Dark blue, black, silver (as shown in the pictures)
* Resolution: 0.001mm/0.00005"
* Accuracy: 0.002mm/0.0001"
* Power supply: One silver-oxide button battery SR44 (1.5V)
* Operating temperature: 0-+40°C
* Storage temperature: -20-+70°C

Order No	Range	Resolution
DM-017	0-25mm	0.001mm
DM-117	25-50mm	0.001mm
DM-217	50-75mm	0.001mm
DM-317	75-100mm	0.001mm
DM-417	100-125mm	0.001mm
DM-517	125-150mm	0.001mm
DM-617	150-175mm	0.001mm
DM-717	175-200mm	0.001mm
DM-817	200-225mm	0.001mm
DM-917	225-250mm	0.001mm
DM-1017	250-275mm	0.001mm
DM-1117	275-300mm	0.001mm
