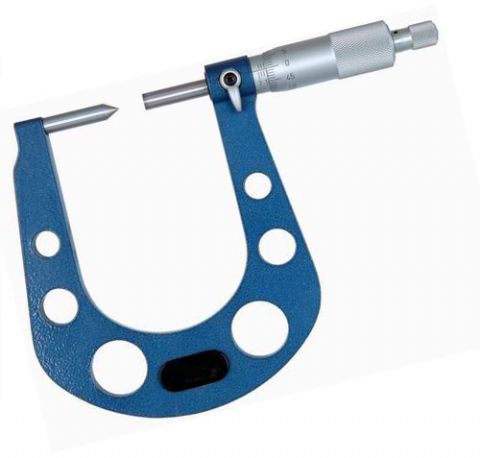

60° Anvil Disc Brake Micrometer: Specifically designed for modern rotors,Measure thickness of disk brakes or the depth of grooves on the disc of brake systems.
88mm deep frame
Graduation: 0.01mm/0.001"
Anvil: 60°
Anvil Length: 29mm,
Carbide tipped measuring faces
Ratchet stop
Spindle: 6.5mm
Jaw width: 64.5mm(DM-122501) and 82mm(DM-122502).
METRIC
|
Order NO
|
Range
|
Resolution
|
|
DM-122501
|
7.6-33mm
|
0.01mm
|
|
|
25-50mm
|
0.01mm
|
INCH
|
Order NO
|
Range
|
Resolution
|
|
DM-122501Y
|
0.3-1.3"
|
0.0001"
|
|
|
1-2"
|
0.0001"
|
