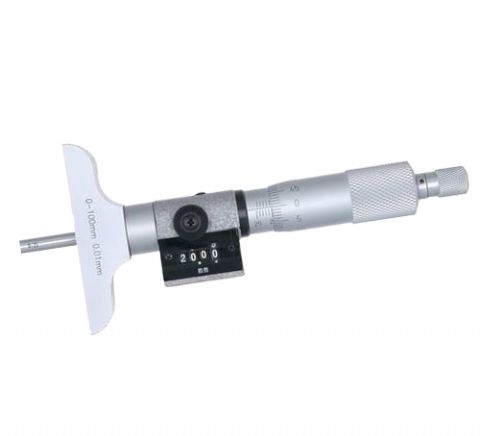

Digit Depth Micrometer with Counter Ranging from 0-300mm/0-12inch
The depth gauge micrometer is a precision measuring instrument, used by engineers to measure depths. Each revolution of the rachet moves the spindle face 0.5mm towards the bottom of the blind hole. it consists of Ratchet, thimble, sleeve, base, spindle and measuring contact.
Part No: DM-163501
Features:
Ratchet stop for accuracy.
Flat and Spherical measuring contact.
With wide base ranging 63mm and 101.5mm, 2.5inch and 4inch.
With Extension Rod.
Chrome-Plated
With counter.
Long life span.
High accuracy.
Metric
Base Width: 63mm Flat measuring contact.
|
Order NO
|
Range
|
Resolution
|
Rods
|
|
DM-163501
|
0-25mm
|
0.01mm
|
1
|
|
|
0-50mm
|
0.01mm
|
2
|
|
|
0-100mm
|
0.01mm
|
4
|
|
|
0-150mm
|
0.01mm
|
6
|
|
|
0-200mm
|
0.01mm
|
8
|
|
|
0-300mm
|
0.01mm
|
12
|
Inch
Base Width: 2.5inch Flat measuring contact.
|
Order NO
|
Range
|
Resolution
|
Rods
|
|
DM-163501Y
|
0-25mm
|
0.01mm
|
1
|
|
|
0-50mm
|
0.01mm
|
2
|
|
|
0-100mm
|
0.01mm
|
4
|
|
|
0-150mm
|
0.01mm
|
6
|
|
|
0-200mm
|
0.01mm
|
8
|
|
|
0-300mm
|
0.01mm
|
12
|
Metric
Base Width: 101.5mm Flat measuring contact.
|
Order NO
|
Range
|
Resolution
|
Rods
|
|
DM-163511
|
0-25mm
|
0.01mm
|
1
|
|
|
0-50mm
|
0.01mm
|
2
|
|
|
0-100mm
|
0.01mm
|
4
|
|
|
0-150mm
|
0.01mm
|
6
|
|
|
0-200mm
|
0.01mm
|
8
|
|
|
0-300mm
|
0.01mm
|
12
|
Inch
Base Width: 4"mm Flat measuring contact.
|
Order NO
|
Range
|
Resolution
|
Rods
|
|
DM-163511Y
|
0-25mm
|
0.01mm
|
1
|
|
|
0-50mm
|
0.01mm
|
2
|
|
|
0-100mm
|
0.01mm
|
4
|
|
|
0-150mm
|
0.01mm
|
6
|
|
|
0-200mm
|
0.01mm
|
8
|
|
|
0-300mm
|
0.01mm
|
12
|
Metric
Base Width: 63mm Spherical measuring contact.
|
Order NO
|
Range
|
Resolution
|
Rods
|
|
DM-163521
|
0-25mm
|
0.01mm
|
1
|
|
|
0-50mm
|
0.01mm
|
2
|
|
|
0-100mm
|
0.01mm
|
4
|
|
|
0-150mm
|
0.01mm
|
6
|
|
|
0-200mm
|
0.01mm
|
8
|
|
|
0-300mm
|
0.01mm
|
12
|
Inch
Base Width: 2.5 Spherical measuring contact.
|
Order NO
|
Range
|
Resolution
|
Rods
|
|
DM-163521Y
|
0-25mm
|
0.01mm
|
1
|
|
|
0-50mm
|
0.01mm
|
2
|
|
|
0-100mm
|
0.01mm
|
4
|
|
|
0-150mm
|
0.01mm
|
6
|
|
|
0-200mm
|
0.01mm
|
8
|
|
|
0-300mm
|
0.01mm
|
12
|
Metric
Base Width: 101.5mm Spherical measuring contact.
|
Order NO
|
Range
|
Resolution
|
Rods
|
|
DM-163531
|
0-25mm
|
0.01mm
|
1
|
|
|
0-50mm
|
0.01mm
|
2
|
|
|
0-100mm
|
0.01mm
|
4
|
|
|
0-150mm
|
0.01mm
|
6
|
|
|
0-200mm
|
0.01mm
|
8
|
|
|
0-300mm
|
0.01mm
|
12
|
Inch
Base Width: 4inch Spherical measuring contact.
|
Order NO
|
Range
|
Resolution
|
Rods
|
|
DM-163531Y
|
0-25mm
|
0.01mm
|
1
|
|
|
0-50mm
|
0.01mm
|
2
|
|
|
0-100mm
|
0.01mm
|
4
|
|
|
0-150mm
|
0.01mm
|
6
|
|
|
0-200mm
|
0.01mm
|
8
|
|
|
0-300mm
|
0.01mm
|
12
|
