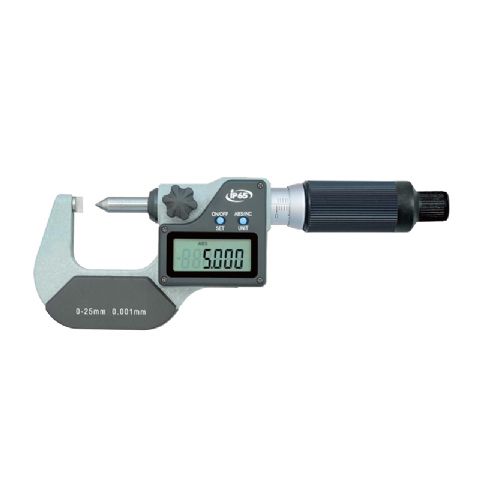

Crimp Height Electronic Micrometer Fast Feeding
Features:
IP65 protection
Fast feeding
Large LCD display
Point spindle
Factory: ROK International
Specification:
Type B: Flat anvil: diameter: 6.5mm , Point: 60 degree
Type C: Blade anvil: 0.5mm Thckness , Point: 60 degree
METRIC
Type B
Order NO
|
Range
|
Resolution
|
Accuracy
|
DM-180501B
|
0-25mm
|
0.001mm
|
0.004mm
|
DM-180502B
|
25-50mm
|
0.001mm
|
0.004mm
|
DM-180503B
|
50-75mm
|
0.001mm
|
0.005mm
|
DM-180504B
|
75-100mm
|
0.001mm
|
0.005mm
|
Type C
Order NO
|
Range
|
Resolution
|
Accuracy
|
DM-180501C
|
0-25mm
|
0.001mm
|
0.004mm
|
