Gage Block Sets Caliper Calibration Gauge Block

Product Name: Gage Block Sets Caliper Calibration Gauge Block

Product Numbers: GB-14150

Product Specifications: 10, 20, 20, 41.2, 81.5, 121.8mm

Product Unit: 10, 20, 20, 51.2, 121.5, 191.8mm

Product Remark: For Digital Caliper Calibration

Product Class:Measuring Tools > Gauge Block Pin Gauge > Steel Gauge Block

Product Details

【DateTime:2018-12-15 Browse:】【Font: Big Mid Small】【Print】【Close】

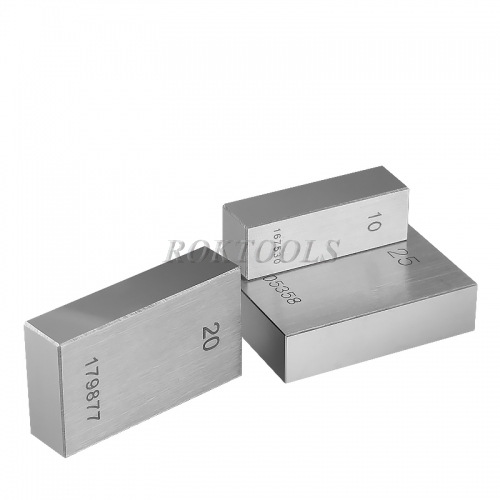

Gauge Block Sets Slip Gauge Jo Blocks For Caliper

The block sets are designed for calibrate Digital Caliper 0-150mm, 200mm, 300mm, Each block as specified length. It is made of hardened steel. Inspector can join different size together to get differnt length. We call it wringing.Various grading standards include: JIS B 7506-1997 (Japan)/DIN 861-1980 (Germany), ASME (US), BS 4311: Part 1: 1993 (UK). Tolerances will vary within the same grade as the thickness of the material increases. For inspecting calipers, one should combine block and pin gauge to get more accurate inspection, Especiall for length less than 10mm.

Features:

-Made of hardened steel

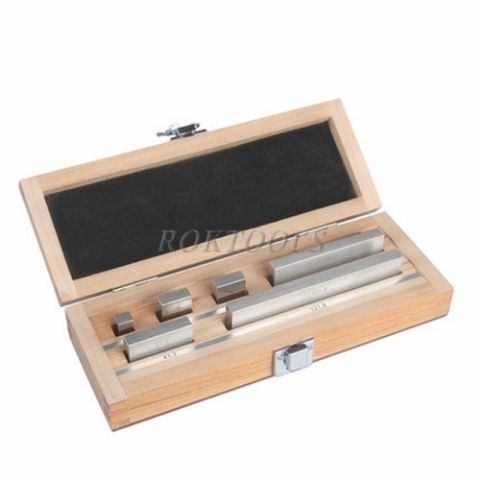

-Packed in the wooden box or other box

-Three types of grade: 0,1,2

Specification:

GB-14150 150mm caliper 10, ; 20, 20, 41.2, 81.5, 121.8mm

GB-14200 200mm caliper 10, ; 20, 20, 51.2, 121.5, 191.8mm

GB-14300 300mm Caliper 10, 20, 20, 41.2, 51.2, 81.5, 101.2, 121.5, 121.8, 191.8, 201.5, 291.8mm

Gauge Block Sets
