Gauge blocks (also known as gage blocks, Johansson gauges, slip gauges, or Jo blocks) are a system for producing precision lengths. It is fundamental standards for linear measurement.For adjusting,checking ,or inspecting measuring instruments and tools ,and precision workpiecesThe individual gauge block is a metal or ceramic block that has been precision ground and lapped to a specific thickness. Gauge blocks come in sets of blocks with a range of standard lengths. In use, the blocks are stacked to make up a desired length.



-High abrasion performance
-High accuracy

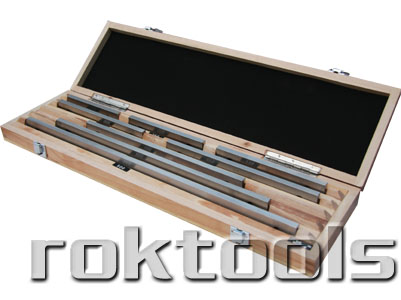

-Packed with wooden box.

-Made of high quality stress relieved alloy steel
-Available in 3 grades:
- Grade 0 for calibration
- Grade 1 for inspection
- Grade 2 for workshop

Specification:



Number Of Blocks	Standard Length Series(mm)	Increment	Plieces	Technical standards	Part No
					Class 0	Class 1	Class 2
122	0.5	-	1	GB/T6093	GB-1122-0	GB-1122-1	GB-1122-2
	1	-	1
	1.0005	-	1
	1.001........1.009	0.001	9
	1.01........1.09	0.01	49
	1.5.........1.9	0.1	5
	2..........25	0.5	47
	30........70	10	5
	75	-	1
	80.........100	10	3
112	1.0005	-	1	JIS B7506	GB-1112-0	GB-1122-1	GB-1122-2
				DIN861
	1.001.......1.009	0.001	9
	1.1........1.49	0.01	49
	0.5.........24.5	0.5	49
	25.........100	25	4
103	1.005	-	1	JIS B7506	GB-1103-0	GB-1103-1	GB-1103-2
	1.01.......1.49	0.01	49	DIN861
	0.5........24.5	0.5	49
	25........100	25	4
91	0.5	-	1	GB/T6093	GB-1091-0	GB-1091-1	GB-1091-2
	1	-	1
	1.001.....1.009	0.001	9
	1.01......1.49	0.01	49
	1.5.......1.9	0.1	5
	2........9.5	0.5	16
	10...............100	10	10
88	1.005	-	1	DIN861	GB-1088-0	GB-1088-1	GB-1088-2
	1.001........1.009	0.001	9
	1.01.........1.49	0.01	49
	0.5..........9.5	0.5	19
	10........100	10	10
87	1.001.......1.009	0.001	9	JIS B7506	GB-1087-0	GB-1087-1	GB-1087-2
	1.01.......1.49	0.01	49	DIN861
	0.5.......9.5	0.5	19
	10......100	10	10
83	0.5	-	1	GB/T6093	GB-1093-0	GB-1093-1	GB-1093-2
	1	-	1
	1.005	-	1
	1.01.......1.49	0.01	49
	1.5.......1.9	0.1	5
	2.0.......9.5	0.5	16
	10.......100	10	10
76	1.005	-	1	JIS B7506	GB-1076-0	GB-1076-1	GB-1076-2
	1.01.......1.49	0.01	49
	0.5......9.5	0.5	19	DIN861
	10.........50	10	5
	75, 100	25	2
47(Gernany)	1.005	-	1	DIN861	GB-1047G-0	GB-1047G-1	GB-1047G-2
	1.01........1.19	0.01	19
	1.2.........1.9	0.1	8
	1........9	1	9
	10......100	10	10
47(Japanese)	1.005	-	1	JIS B7506	GB-1047J-0	GB-1047J-1	GB-1047J-2
	1.......1.09	0.01	9
	1.1.......1.9	0.1	9
	1......24	1	24
	25.......100	25	4
46	1.001......1.009	0.001	9	GB/T6093	GB-1046-0	GB-1046-1	GB-1046-2
	1.01.......1.09	0.01	9
	1.1......1.9	0.1	9	DIN861
	1.......9	1	9
	10......100	10	10
38	1.005	-	1	GB/T6093	GB-1038-0	GB-1038-1	GB-1038-2
	1.01.......1.09	0.01	9
	1.1......1.9	0.1	9
	1.........9	1	9
	10.........100	10	10
32	1.005	-	1	JIS B7506	GB-1032-0	GB-1032-1	GB-1032-2
	1.01.......1.09	0.01	9
	1.1.....1.9	0.1	9	DIN861
	1.......9	1	9
	10.......30	10	3
	50	-	1
9	1.001-1.009	0.001	9		GB-1009-0	GB-1009-1	GB-1009-2
9	0.991-0.999	0.001	9		GB-1009A-0	GB-1009A-1	GB-1009A-2
8	125-175	25	3		GB-1008B-0	GB-1008B-1	GB-1008B-2
	200-250	50	2
	300-500	100	3
