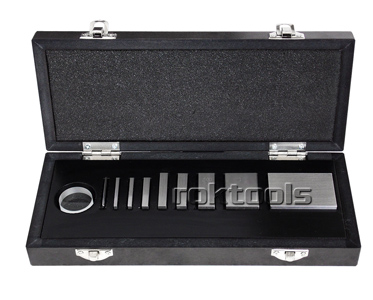

Description: Gauge blocks (also known as gage blocks, Johansson gauges, slip gauges, or Jo blocks) are a system for producing precision lengths. The individual gauge block is a metal or ceramic block that has been precision ground and lapped to a specific thickness. Gauge blocks come in sets of blocks with a range of standard lengths. In use, the blocks are stacked to make up a desired length.Gage (gauge) blocks are available in various grades, depending on their intended use. The grading criterion is tightness of tolerance on their sizes; thus higher grades are made to tighter tolerances and have higher accuracy and precision.

    ----Special hardened steel.

    ----As per DIN 861 / JIS B7506 standards.

    ----Use of high quality raw materials and appropriate heat treatment, thus guaranteeing a durable shape and dimensional stability of the gauge blocks over years.

    ---- Unique flat lapping polish as well as edge rounding techniques, leading to superior wringability.

    ----Proper serial number marked on each gauge block.

    ----Very low deviations in flatness and parallelism of the measuring faces, resulting in highly accurate gauges.

    ----Can OEM as per customers request.

Part No	Standard	Grade	Specification
GB-52104-14	ISO/DIN/JIS	0, 1	Size: 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2, 22.8, 25, 50, 75, 100mm 1pcs opical flat 30mm dial.  Thickness: 12.0mm,
GB-52104-11	ISO/DIN/JIS	0, 1	Size: 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2, 22.8, 25 1pcs opical flat 30mm dial.  Thickness: 12.0mm,
GB-52104-10	ISO/DIN/JIS	0, 1	Size: 1.00, 1.02, 2, 3, 5, 10, 15, 20 mm 1pcs opical flat 30mm dial.  Thickness: 12.0mm,
GB-52104-8	ISO/DIN/JIS	0, 1	Size: 25,50,75,100,125,150,175,200
