Part No: RADC-1001

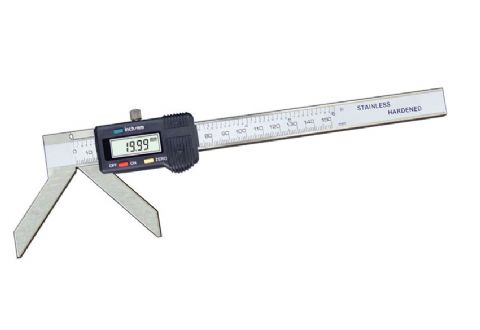

This caliper is designed for measruing the radius of arc of incomplete circle, It is special caliepr, as its jaw is not parallel. Customers can easily put the item between two jaws.

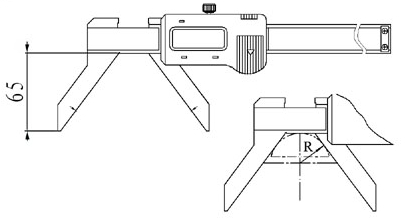

Point A,C,E are three tangential nbsp point between the caliper and the workpiece.R is the radii of the workpiece. If: α = 73°44,Then,circular function: BD = R.
Features:
* Easily measure the radius of arc
* Made of stainless steel.
* mm/in convertible.
* Zero setting at any position
* with RS 232 data output interface
Specification:
The angle of two jaw: α = 73°44
Range: 3-150mm
Resolution: 0.01mm
|
Order No
|
Range
|
Resolution
|
Error
|
Remarks
|
|
|
3~150mm/6"
|
0.01mm/0.0005"
|
0.03mm
|
|
