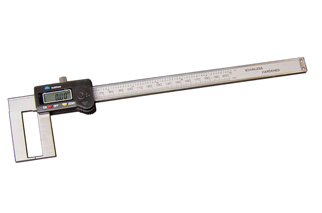

Outside Groove Caliper Digimatic (Neck Caliper)
Designed for the measurement of Hard-to-Reach Outside Grooves and Dimensions, recesses
Features:
--Made of Stainless steel with hardened process
--Smooth slide with accuracy
--Neatly cut edge
--Highly Ground surface without burr.
--mm/inch convertible
--IP 54 water resistant (optional)
|
Order NO
|
Range(mm)
|
Accuracy
|
length of jaw
|
Thickness of Tip
|
Length of Tip
|
|
OGDC-10131
|
0-150
|
0.03mm
|
40mm
|
1mm
|
5mm
|
|
OGDC-10132
|
0-200
|
0.04mm
|
50mm
|
1mm
|
7mm
|
|
OGDC-10133
|
0-300
|
0.05mm
|
60mm
|
1.5mm
|
8mm
|
