Note: All caliper are shipped with standard jaw. NOT long jaw. Long jaw must be ordered respectively and specially manufactured.
The package of caliper over 1000mm/40inch, is longer than 1200mm, The Courier will charge extra fee for it. Please note, our Shipping weight is not based on its NET weight, but based on the Size(bulk) weight which calucated by Courier. If you cannot accept such weight, Do not place order.

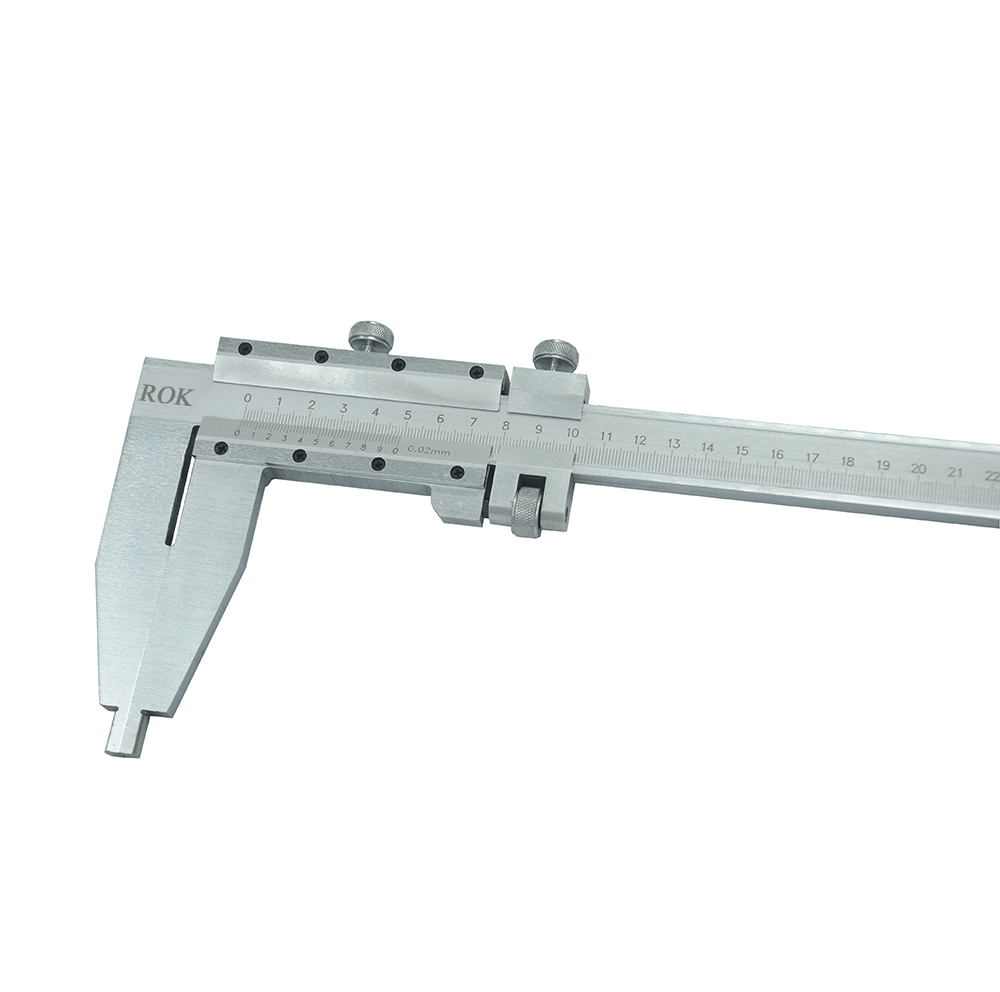

The IV Type caliper is featured with fine adjustment. Even though it is no upper jaw, it can measure the inside diameter by lower jaw(next jaw) nib. For easy use, the heavy duty caliper must asseble with find adjustment and micro-nut.
Features:
---Ground and Lapped for precision work
---Inside and ouside measurement
---Thumbroll adjustment
---With Micro device with micro nut,making the caliper measurement force in uniform, easy to adjust the measured pressure to reduce measurement error.
---The graduation is marked on the beam clearly for easy reading
---With Fine adjustment
---Thicker Beam for stable measurement.
Specification:
ItemNo. (Stainless Steel)
Item No. (Carbon Steel)
Range(mm)
Grad.(mm)
A(mm)
B(mm)
C(mm)
D(mm)
Accuracy
Normal jaw
Long jaw
Normal jaw
Long jaw
HD-502S
HD-502C
0-500
0.05
100/125
150
10
12
25
±0.07mm
±0.10mm
HD-602S
HD-602C
0-600
0.05
100/125
150
10
12
25
±0.08mm
±0.13mm
HD-802S
HD-802C
0-800
0.05
125/150
200
20
18
32
±0.09mm
±0.14mm
HD-1002S
HD-1002C
0-1000
0.05
125/150
200
20
18
32
±0.10mm
HD-1502S
HD-1502C
0-1500
0.05
125/150
200
20/30
20
32/41.5
±0.16mm
±0.18mm
HD-2002S
HD-2002C
0-2000
0.05
125/150
300
20/30
20
52
±0.20mm
±0.26mm
HD-2502S
HD-2502C
0-2500
0.05
150/200
300
20/30
20
52
±0.24mm
±0.30mm
HD-3002S
HD-3002C
0-3000
0.05
150/200
300
20/30
20
52
±0.31mm
±0.35mm
Note: Inch are all available
Longer range can be manufactured upon customer request. 3000mm, 3500mm 4000mm 5000mm 6000mm
Specification or size may be changed without notice in advance.
