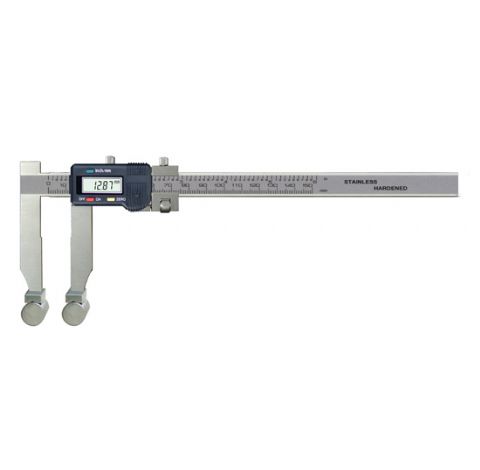

Groove Digital Caliper With Cylindrical Contact Point
Features:
---The caliper is equipped with Cylindrical measuring point.
---The beam is made of hardened steel
---Measure the diameter of raceway in the ball bearing or the circular surface
---Cylindrical diameter can be changed as customers request.
Specification:
|
Part No
|
Range
|
Resolution |
Error
|
A mm
|
Φ mm |
| IGDC-10211 |
150mm/6
|
0.01mm |
±0.03 mm |
75 |
16 |
| IGDC-10212 |
200mm/8 |
0.01mm |
±0.04 mm |
75 |
16 |
| IGDC-10213 |
300mm/12 |
0.01mm |
±0.05 mm |
75 |
16 |
Manufacturer: ROK Internaitonal Industry Co., Limited
Note: We reserve the right to change products and specifications at any time without prior notice, All Pictures shown are for illustration pupose only, Actual product may wary due to product enhancement.
