Internal Inside Groove Digital Caliper With Conical Measuring Contact

Product Name: Internal Inside Groove Digital Caliper With Conical Measuring Contact

Product Numbers: IGDC-10121B

Product Specifications: Range:20-500mm

Product Unit: Resolution: 0.01mm

Product Remark: OEM is accepted

Product Class:Measuring Tools > Calipers > Inside Groove Caliper Vernier

Product Details

【DateTime:2014-08-30 Browse:】【Font: Big Mid Small】【Print】【Close】

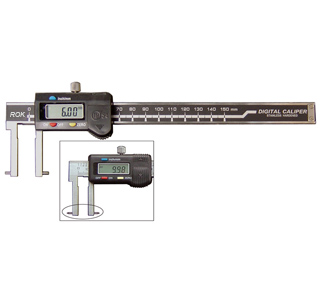

Internal Inside Groove Digital Caliper With Conical Measuring Contact

Brand: ROK

For measuring the diameter of inside groove.

Specification:

Art No	Range(mm)	Accuracy	Length of jaw	Diam of point	Length of Cylinder
IGDC-10121B	20-170	+/-0.03mm	40mm	2.5mm	5mm
IGDC-10122B	24-170	+/-0.03mm	30mm	2mm	6mm
IGDC-10123B	35-170	+/-0.04mm	60mm	2mm	6mm
IGDC-10124B	25-200	+/-0.04mm	40mm	2mm	5mm;
IGDC-10125B	40-200	+/-0.05mm	70mm	3mm	7mm
IGDC-10126B	30-300	+/-0.04mm	50mm	2mm	5mm
IGDC-10127B	50-300	+/-0.05mm	80mm	3mm	8mm
IGDC-10128B	40-500	+/-0.06mm	90mm	3mm	6mm
IGDC-10129B	60-500	+/-0.07mm	120mm	3mm	10mm
IGDC-101210B	80-500	+/-0.07mm	150mm	3mm	16mm

Art No                  Range(mm)       Accuracy         Length of jaw     Diam of point      Length of Cylinder
IGDC-10121B    20-170                  +/-0.03mm         40mm                  2.5mm                      5mm
IGDC-10122B     24-170                 +/-0.03mm           30mm                  2mm                         6mm
IGDC-10123B    35-170                +/-0.04mm          60mm                   2mm                       6mm
IGDC-10124B     25-200                +/-0.04mm           40mm                    2mm                        5mm
IGDC-10125B     40-200                +/-0.05mm           70mm                    3mm                        7mm
IGDC-10126B     30-300                +/-0.04mm           50mm                    2mm                        5mm
IGDC-10127B     50-300                +/-0.05mm          80mm                   3mm                         8mm
IGDC-10128B     40-500                +/-0.06mm          90mm                   3mm                         6mm
IGDC-10129B    60-500                +/-0.07mm          120mm                3mm                         10mm
IGDC-101210B   80-500                +/-0.07mm          150mm                3mm                        16mm
