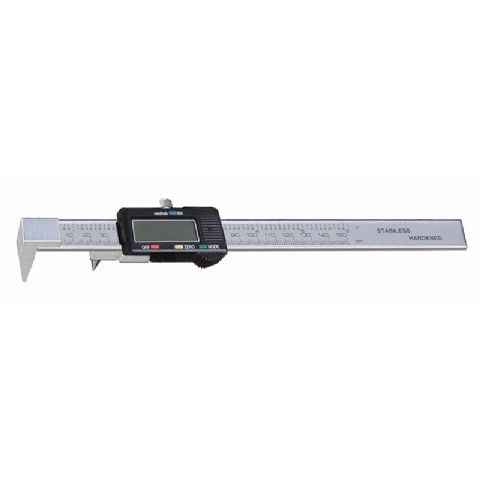

Back-Jaw Edge-to-Center Digimatic Caliper
Compared with CPDC-11241, The edge to center caliper is manufactured with fixed jaw and one of jaw is with flat surface, which can closely touch the surface of the edge. which the other jaw is conical type to touch the hole of workpiece. The caliper is provided with jaws on the back of the slider so measurements can be read easily by looking down
Features:
---Designed to measure apothem
---OEM for different size upon customers request.
---Resolution: 0.01mm
---Fast Delivery
---With Jaw on the back of the slider
---Zero at any position
---Inch/Metric convertible
Specification:
| Order NO |
Range |
Accuracy |
Over length |
Resolution |
Diameter of conical |
| CPDC-11231 |
10-200mm |
0.1mm |
310mm |
0.01mm |
10mm |
| CPDC-11231 |
10-300mm |
0.1mm |
410mm |
0.01mm |
10mm |
