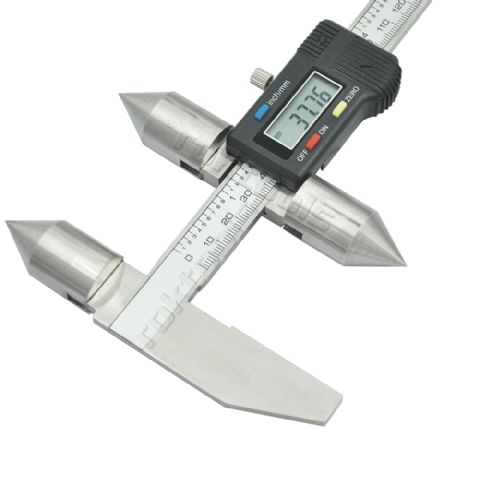

The caliper can measure the distance between two holes and the distance from edge to center point. It is features with conical point which can touch the deep hole. The jaw is featured with conical , easily to find the center of hole. Polygon is a line segment from the center to the midpoint of one of its sides
Features:
---With Conical contact points.
---Heavy duty design
---The conical angle can be changed as the customers request
---Stainless Steel , Hardened, Lapped.
---Resolution: 0.01mm
Specification:
|
Measuring Range
|
Order No
|
Resolution
|
Error
|
A mm |
B mm |
Φ mm |
θ ( °) |
| 10-150 mm |
CPDC-11221
|
0.01 mm
|
±0.05 mm |
55 |
45 |
20 |
60 |
| 10-200 mm |
CPDC-11222 |
0.01 mm |
±0.07 mm |
55 |
45 |
20 |
60 |
| 10-300 mm |
CPDC-11223 |
0.01 mm |
±0.09 mm |
55 |
45 |
20 |
60
|
