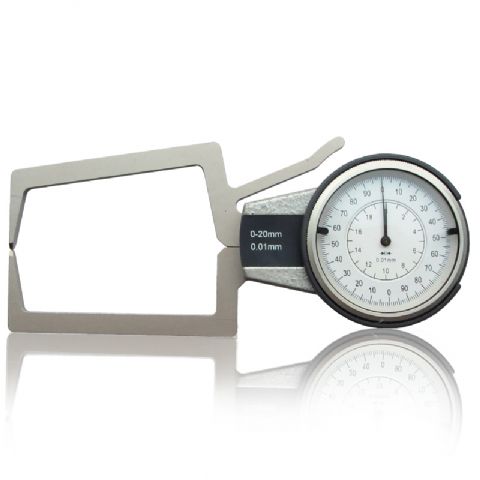

External Dial Caliper Gage Metal Sheet Groove Thickness Gauge
Zoom Browse
Product Name: External Dial Caliper Gage Metal Sheet Groove Thickness Gauge
Product Numbers: CG-301
Product Specifications: Range: 10-20, 20-30, 30-40mm
Product Unit: Gauge With dial indicator
Product Remark: thickness of groove, Tube
Product Class:Measuring Tools > Caliper Gauges > Outside Caliper Gauge
Product Details
【DateTime:2021-09-07 Browse:】【Font: Big Mid Small】【Print】【Close】

External Dial Caliper Gage Metal Sheet Groove Thickness Gauge

Travel: 10mm
Order No. Range Accuracy Tip Size(mm) Tip Type(mm) Length of jaw (mm)
CG-301 0-10mm 0.002mm 3*8 tip 40
CG-302 10-20mm 0.002mm 3*8 tip 40
CG-303 20-30mm 0.002mm 3*8 tip 40
CG-304 30-40mm 0.002mm 3*8 tip 40
CG-305 40-50mm 0.002mm 3*8 tip 40
CG-306 0-10mm 0.002mm 3*8 ball 40
CG-307 10-20mm 0.002mm 3*8 ball 40
CG-308 20-30mm 0.002mm 3*8 ball
 30
CG-309 30-40mm 0.002mm 3*8 ball
 40
CG-310 40-50mm 0.002mm
 3*8
 Ball 40



Travel 20mm

Order No. Range Accuracy Tip Size Tip Type(mm) Length of jaw (mm)
CG-311 0-20mm 0.003mm 6.5*25 tip 80
CG-312 10-30mm 0.003mm 6.5*25 tip 80
CG-313 20-40mm 0.003mm 6.5*25 tip 80
CG-314 30-50mm 0.003mm 6.5*25 tip 80
CG-315 40-60mm 0.003mm 6.5*25 tip 80
CG-316 0-20mm 0.003mm 6.5*25 ball 80
CG-317 10-30mm 0.003mm 6.5*25 ball 80
CG-318 20-40mm 0.003mm 6.5*25 ball
 80
CG-319 30-50mm 0.003mm 6.5*25 ball
 80
CG-320
 40-60mm 0.003mm
 6.5*25
 Ball 80
