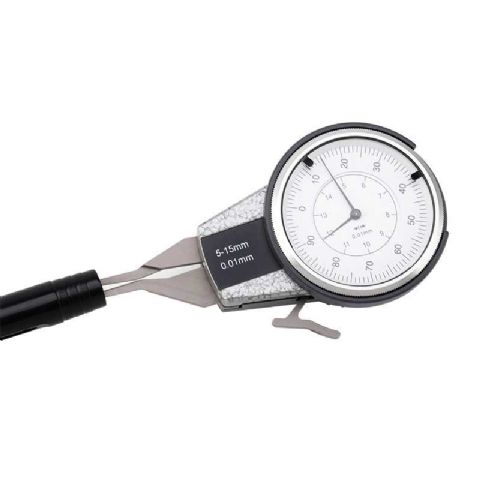

Inside Dial Caliper Gage Inside Diameter Measurement
Zoom Browse
Product Name: Inside Dial Caliper Gage Inside Diameter Measurement
Product Numbers: CG-401
Product Specifications: For Internal Groove
Product Unit: 0.01mm
Product Class:Measuring Tools > Caliper Gauges > Inside Caliper Gauge
Product Details
【DateTime:2021-09-07 Browse:】【Font: Big Mid Small】【Print】【Close】

Inside Dial Caliper Gage Inside Diameter Measurement

Features:

-For measure the inside groove. bore,

-Range from 5-15mm to 40-60mm. Covering most of bore gauge and internal groove


Travel: 10mm
Order No. Range Accuracy Tip Size Tip Type(mm) Length of jaw (mm)
CG-401 5-15mm 0.02mm 1.0*1.5 tip 20
CG-402 10-20mm 0.02mm 1.5*3.0 tip 25
CG-403 20-30mm 0.02mm 2.0*6.5 tip 30
CG-404 30-40mm 0.02mm 2.5*9.0 tip 30
CG-405 40-50mm 0.02mm 2.5*9.0 tip 30
CG-406 10-20mm 0.02mm 1.5*3.0 ball 25
CG-407 20-30mm 0.02mm 2.0*6.5 ball 30
CG-408 30-40mm 0.02mm 2.5*9.0 ball
 30
CG-409 40-50mm 0.02mm 2.5*9.0 ball
 30



Travel 20mm

Travel: 10mm
Order No. Range Accuracy Tip Size Tip Type(mm) Length of jaw (mm)
CG-411 5-25mm 0.03mm 1.0*1.5 tip 35
CG-412 10-30mm 0.03mm 2.0*3.5 tip 55
CG-413 20-40mm 0.03mm 3.0*6.5 tip 80
CG-414 30-50mm 0.03mm 2.5*8.5 tip 80
CG-415 40-60mm 0.03mm 3.0*8.5 tip 80
CG-416 10-30mm 0.03mm 2.0*3.5 ball 55
CG-417 20-40mm 0.03mm 3.0*6.5 ball 80
CG-418 30-50mm 0.03mm 3.0*8.5 ball
 80
CG-419 40-60mm 0.03mm 3.0*8.5 ball
 80
