90 Dgreee Beveled Edge Precision Engineering Square
Zoom Browse
Product Name: 90 Dgreee Beveled Edge Precision Engineering Square
Product Numbers: PESQ-10110
Product Specifications: 50x40mm 300x200mm
Product Unit: DIN875 grade 00 or 0
Product Remark: China precision Square manufacturer
Product Class:Measuring Tools > Angle and Square > Engineers Squares
Product Details
【DateTime:2013-12-13 Browse:】【Font: Big Mid Small】【Print】【Close

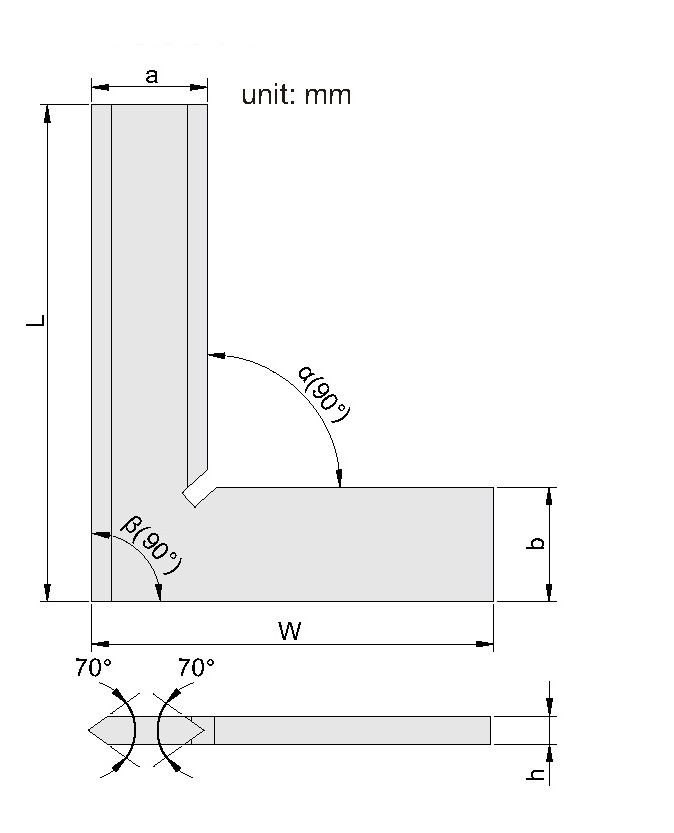

90° Beveled Edge Precision Square
 An engineers square is an all metal square, consisting of a blade and stock (similar to a carpenters try square) and usually silver soldered together. The stock is thicker than the blade, allowing the stock to be placed against an edge in order to mark a right angle, and also to make it more stable if its stood with the blade facing upwards.Engineers squares are usually manufactured to a high degree or accuracy, and often used to check and calibrate machinery. If extreme accuracy is important, buy one with a stated tolerance.
Features:
Satin chrome plating
Beveled edges for inside and outside measurement
Made of hardened stainless steel,lapping
Standard: DIN875

Order No

Size

Squareness (α) μm

Squareness (β)μm

Chrome

a

a

h

PESQ-10110

50*40

6

6

with

13

13

4

PESQ-10120

75*50

6

7

with

15

15

4

PESQ-10130

100*70

7

7

With

20

20

5

PESQ-10140

150*100

7

8

With

30

30

6

PESQ-10150

200*130

8

9

with

30

30

7

PESQ-10160

250*165

9

10

without

35

35

7

PESQ-10170

300*200

10

11

Without

40

40

8

Grade 00

Order No

Size

Squareness (α) μm

Squareness (β)μm

Chrome

a

a

h

PESQ-10114

50*40

2.4

2.5

with

13

13

4

PESQ-10124

75*50

2.6

2.8

with

15

15

4

PESQ-10134

100*70

2.8

3.0

With

20

20

5

PESQ-10144

150*100

3.2

3.5

With

30

30

6

PESQ-10154

200*130

3.7

4.0

with

30

30

7

PESQ-10164

250*165

4.2

4.5

without

35

35

7

PESQ-10174

300*200

4.6

5.0

Without

40

40

8



Grade 0

beveled square

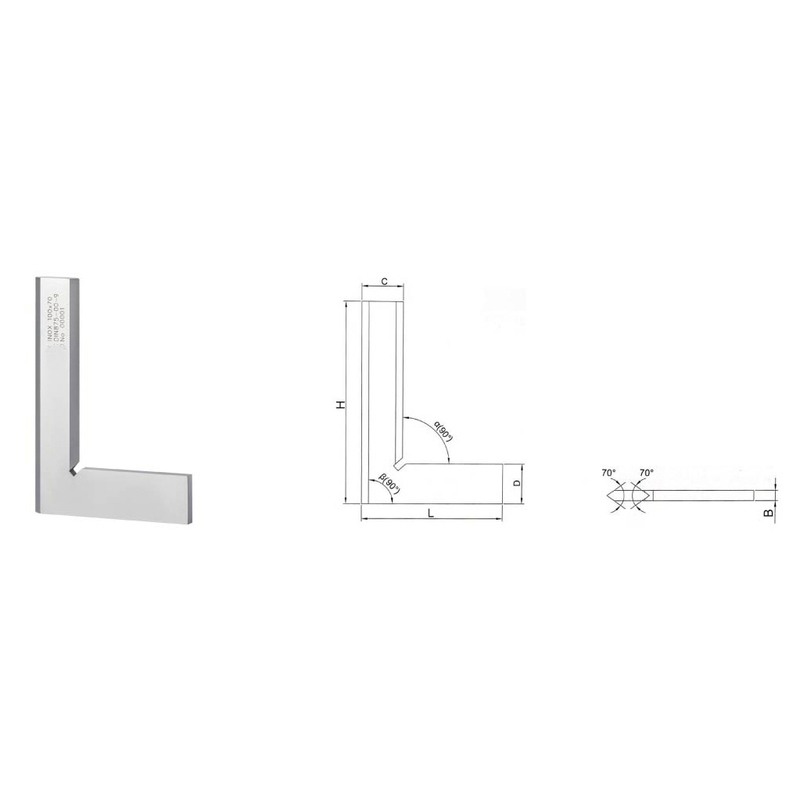

90 degree Beveled Square
