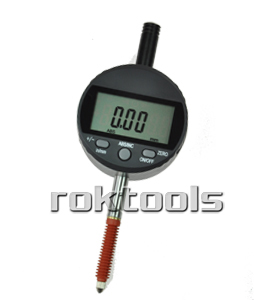

IP67 Water Resistant Digital Dial Indicator
Digital indicators have a clear advantage for data collection in process control applications. They can output measurements directly, usually as an actual value, such as 20.00 mm, to printers or SPC programs with no operator errors in reading or recording. The operator simply positions the workpiece and presses a button. The digital process has even gone wireless within the past five years.
With dial indicators, the operator must interpret the pointer’s position to read the measurement, record it and key the data into a computer. That is three steps during which errors can occur. If data must be entered into a computer system, digital indicators are the best resource
Features:
Data Output
Large LCD display
ABS/PRESET function
ZERO/ON Button
Low-voltage Alarm
Auto power off
Specification:
Power: 3V Li-Battery CR2032
Working Temperature: 0 ~ 40°
Data Output: RS232 Transit
Storeage Temperature: -10°~ 60°
Cautions:
1. Clean the body and spindle by dry fabric prior to use and after using.
2. Use correct clamping size at 8H6mm
Order No.
|
Range(mm)
|
Resolution(mm)
|
Accuracy(mm)
|
Force
|
EDI-321
|
0-12.7
|
0.01
|
0.02
|
less than 1N
|
