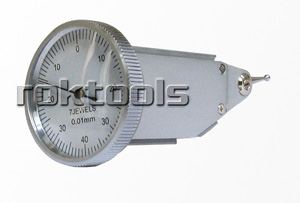

Vertical Dial Test Indicator(DTI) :

Features:

Main body are made from high quality stainless steel for long product life

Crucial parts are made of special non-magnetic material to have high resistance to magnetism and yield high sensitivity, precision gear driven combine with 7 jewel for smooth movement.

Pivot point of the contact lever use miniature ball bearing construction to improve sensitivity and reliability

2 dovetail clamps, Dovetail rails on three sides. Including the top, front and rear of the DTI. Supplied with 2 spigots

High sensitivity and smooth action from the jeweled mechanism.

Supplier with plastic box and with manual.

Order No	Range(mm)	Resolution(mm)	Accuracy(mm)	Dial Diam(mm)	Length(mm)
TI-110	0-0.8	0.01	0.008	32	17.3
TI-111	0-0.8	0.01	0.008	32	29
TI-112	0-1	0.01	0.008	32	22.5
TI-113	0-1	0.01	0.008	32	36
TI-114	0-0.5	0.01	0.008	32	17.3
TI-115	0-0.8	0.01	0.008	40	17.3
TI-116	0-0.8	0.01	0.008	40	29
TI-117	0-1	0.01	0.008	40	22.5
TI-118	0-1	0.01	0.008	40	36
TI-119	0-0.5	0.01	0.008	40	17.3
