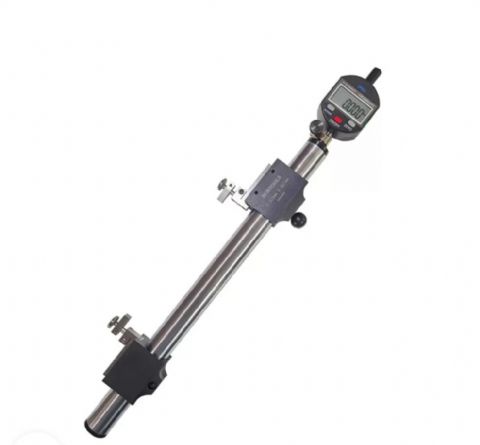

| Product Name: Universal Measuring Instrument Thread Tap ID or OD Measuring |
| Product Numbers: DI-80410 |
| Product Specifications: External and internal measurement of lengths, widths, diameters, distances |
| Product Unit: External and internal tapers |
| Product Remark: External and internal gears |
| Product Class:Measuring Tools > Indicators Series > Universal Measuring Instrument |
|
 Product Details Universal measuring instrument ID/OD comparator gear thread taper or recess
Resolution: 0.01mm
| Order No |
Range Outside |
Range Inside |
Resolution |
Remarks |
| DI-81410-300 |
0-270mm |
35-300mm |
0.01mm |
Industrial use |
| DI-81410-600 |
0~570mm |
35-600mm |
0.01mm |
Industrial use |
| DI-81410-1000 |
0~970mm |
35-1000mm |
0.01mm |
Industrial use |
Resolution: 0.001mm
| Order No |
Range Outside |
Range Inside |
Resolution |
Remarks |
| DI-80410-300 |
0-270mm |
35-300mm |
0.001mm |
Industrial use |
| DI-80410-600 |
0~570mm |
35-600mm |
0.001mm |
Industrial use |
| DI-80410-1000 |
0~970mm |
35-1000mm |
0.001mm |
Industrial use |
Application:
- External and internal measurement of lengths, widths, diameters, distances
- External and internal threads
- Centering shoulders, narrow collars, recesses and grooves
- External and internal tapers
- External and internal gears
|
|
