Universal Measuring Instrument Position Block
Zoom Browse
Product Name: Universal Measuring Instrument Position Block
Product Numbers: DI-80430
Product Specifications: External and internal dimensions.
Product Unit: External and internal threads.
Product Remark: External and internal cones.
Product Class:Measuring Tools > Indicators Series > Universal Measuring Instrument
Product Details
【DateTime:2023-10-15 Browse:】【Font: Big Mid Small】【Print】【Close】

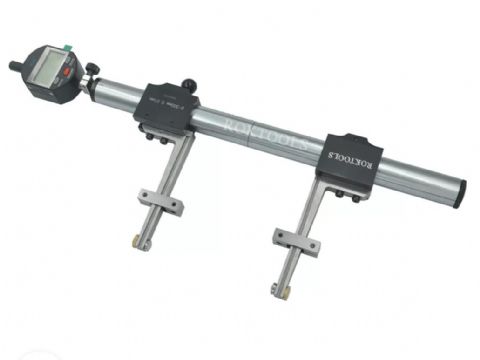

Universal measuring instrument with moveable jaw
Application:
  • External and internal dimensions.
  • External and internal threads.
  • Centring rings
  • Narrow shoulders, recesses and slots.
  • External and internal cones.
  • External and internal splines, and much more.

Resolution: 0.01mm

Order No Range Outside Range Inside Resolution Remarks
DI-81430-300 0-270mm 35-300mm 0.01mm Industrial use
DI-81430-600 0~570mm 35-600mm 0.01mm Industrial use
DI-81430-1000 0~970mm 35-1000mm 0.01mm Industrial use



Resolution: 0.001mm

Order No Range Outside Range Inside Resolution Remarks
DI-80430-300 0-270mm 35-300mm 0.001mm Industrial use
DI-80430-600 0~570mm 35-600mm 0.001mm Industrial use
DI-80430-1000 0~970mm 35-1000mm 0.001mm Industrial use
