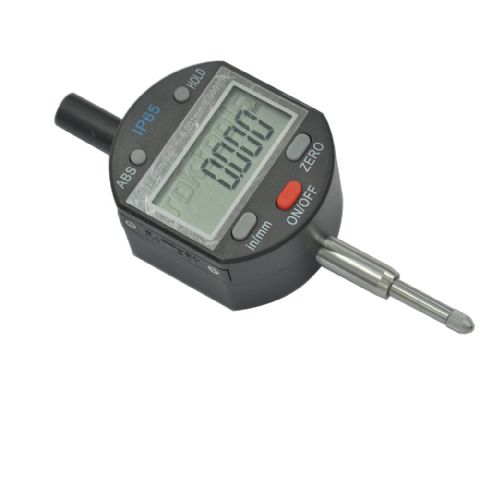

0.001mm Digital Dial indicator IP65 Electronic dial gauge

       Compared with MDI-101, This indicator possesses more function with five key. TOL and Max function. It is the highest accuracy in China market. suitable for professional users.  Customers can enjoy high accuracy quality same as the ones from Janan or Germany, but with 1/6 pricing.

Features:;

1. Auto Power off or maual power off
2. Preplace started position value,without reset before change the battery, Absolute Original;
3. Counting converse
4. Metric and Inch convertible at any position
5. Absolute and relative measurement (ABS)
6. Zero setting at any position
7. TOL Tolerance setting
8.  Auto distinguish windage state
9. High-speed tracking maximum/minimum/Peak
10.run-out detector
11.with data output.
12. Low battery Indicator 13. Less shaking error from Stem
14. Alu fram with ABS bezel
15. Top quality in China.
16. The stem is made of high stainless steel , with hardned measuring tips. not easy to worn out.

Order No	Range(mm)	Resolution(mm)	Accuracy(um)	Measuring Force
MDI-90201	0-12.7	0.001	4	less than 1N
MDI-90202	0-25.4	0.001	5	less than 1N
MDI-90203	0-30	0.001	6	less than 1N
MDI-90204	0-50.8	0.001	6	less than 1N
