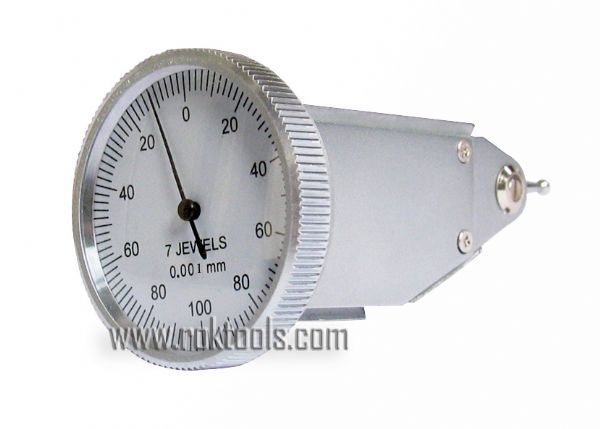

Vertical Dial Micro Test Indicators Features:
Range: 0-0.12mm
Resolution: 0.001mm
Graduation:0.001mm
Dial Color: White
Dial Diameter:32mm/40mm
With adjustable bezel
Dovetail rails on three sides. Including the top, front and rear of the DTI. Supplied with 2 spigots
High sensitivity and smooth action from the jeweled mechanism.
|
Order No
|
Range(mm
|
(mm)
|
Accuracy(mm)
|
Mesuring Point Length
|
|
TI-215
|
0-0.12
|
0.001
|
0.003
|
12.8
|
|
TI-216
|
0-0.12
|
0.001
|
0.003
|
12.8
|
