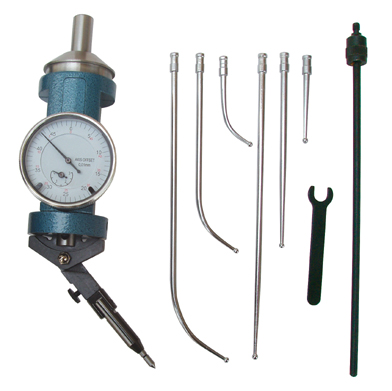

Provides quick, accurate centering in boring and milling setup
The indicator remains stationary while the spindle rotates,This will allow you to use both hands to position the machine table with the indicator facing you at all times.
Use this indicator to quickly center work pieces or fixtures on your mill
Can be used to center internal and external diameters
Furnished in a fitted case
Set includes three internal feelers, center point feeler and restraining arm.
including:
Each division reads up to 0.01mm
Locating Accuracy is 0.0002
Dial diameter - 40mm (1 5/8inch).
Body length - 120mm (4 5/8 inch).
Spindle length - 20mm (12/16 inch).
Spindle Diameter - 10mm.
Straight feeler - 40mm (1 9/16"), 90mm (3 9/16"), 144mm (5 11/16").
Curved feeler - 42mm (1 11/16"), 92mm (3 5/8"), 142mm (5 5/8").
