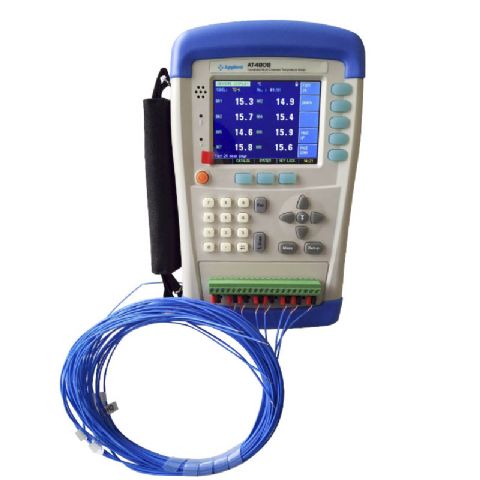

Portable 8 Channel Temperature Meter
Feature:
.Large color TFT display,three kinds of character font.
.Three measuring speed.
.Cold Junction Compensation
.Standard configuration U-disk and Mini-USB interface,support mass storage device.
.Broken thermocouple checking function
.Allocated channel scanning
.Standard configuration ATS48 data acquistion software
.8.4V, Li, 2200mA rechargeable battery
Specification:
|
SPECIFICATIONS
|
|
Graduation
|
Thermocouple: J/K/T/E/S/N/B/R
|
|
Accuracy
|
0.2%+1°C
|
|
Measurement Range
|
-200°C~1300°C (variation depend on graduation)
|
|
Resolution
|
0.1°C
|
|
Channel
|
8 channels
Can be extended to 128 channels
|
|
Speed
|
Fast: 100ms/channel Medium: 500ms/channelLow: 1s/channel
|
|
Correction
|
Error correction for each channel
|
|
Comparator
|
High & low beepHigh & low value setting individually for each channel
|
|
Interface
|
U-disk interface, Mini-USB (virtual serial port)
|
|
Software
|
ATS45 data acquisition software
|
|
Cold Junction Compensation
|
Accuracy: 0.5°C
|
|
Others
|
TFT-LCD
True-color LCD display,broken thermocouple checking function
|
|
GENERAL FEATURES
|
|
Power Supply
(ATL909)
|
Input: 100-240V~50/60Hz 0.35A Output: 9V 1A DC
|
|
Battery Parameters
|
8.4V, Li, 2200mA rechargeable battery
|
|
Battery charging time
|
Single continuous charging time: Max 300Min
|
|
Battery Lifetime
|
≥8 hours
|
|
Dimension & Weight
|
Outside(mm): 130.23 (Width)x210.76(Height)x37.88 (Depth) 650g
|
|
ORDER INFORMATION
|
|
Accessories
|
K type thermocouple 8 teams
ATL909: DC power adaptor
ATL202 Carrying Case
ATL804: lithium battery
ATL105Mini-USB communication cable
ATS45 data acquisition software
|
Accessories:
K type thermocouple 8 teams
ATL909: DC power adaptor
ATL202 Carrying Case
ATL804: lithium battery
ATL105Mini-USB communication cable
ATS45 data acquisition software
