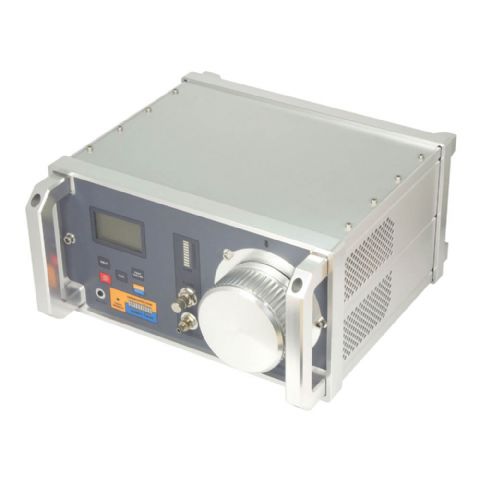

Chilled Mirror Dew Point Hygrometer

       Multifunctional, portable dew point humidity meter , especially designed for field use. Typically apply to dew point measurement of SF6gas.

Features:

* Based on the principle of chilled mirror.
* Accurate measurement is guaranteed.
* The system is stable, No need to repeatedly calibrated.
* A built in electronic sample gas flow monitor.
* Use RS-232 data output to connect with PC.

Specification:

DP29-40 is specifically designed for air dew point measurement. It is applicable to standard reference for electronic component durability , dew point control for firing furnaces, dew point control for fuel cell test system, etc.
DP29-SF6 is specially for the measurement of Sulfur Hexafluoride (SF6).
DP29-60 is a standard type. It applies to standard reference for laboratory calibration, moisture control for ceramic firing furnaces, humidity control for thermo-hygrostat chamber.

*Accuracy:≤±0.2°C，±1Digit
*Repeatability:≤±0.1°C，±1Digit
*Resolution:0.1°C
*Default Output:USB
*Optional Output:±10mv/°C (0°C= 0mv) or 4-20mA
*Measurement Principle:Chilled Mirror
*Refrigeration:Semiconductor Refrigeration
*Inlet Flow:15~60L/h, Generally 30~40L/h
*Inlet Pressure:10mbar~10bar (1kpa~1Mpa)
*Response Time:2°C/Second (Maximum)
*Pump:Optional Accessory
*Mirror Check:Press the Mode Conversion Key to mirror check mode (‘CH’ on the display), and check manually
*Instrument Check Press the Test Cooling Key, open the measurement probe, and check manually at mirror check mode.
*Voltage:220VAC±10%，50/60HZ
*Consumption:About 160 Watts
*Temperature:0~50°C
*Humidity:<90% , No Condensation
*Weight:About 7.22kg
*Dimension:342(W)x140(H)x326(D) mm

Standard Accessories:
1. Main Unit
2. Inlet Tube (FEP，3m), With Connector
3. Instruction Manual
4. Packaging Box

Optional Accessories:
1. USB, RS-232 data cable with software
